Description

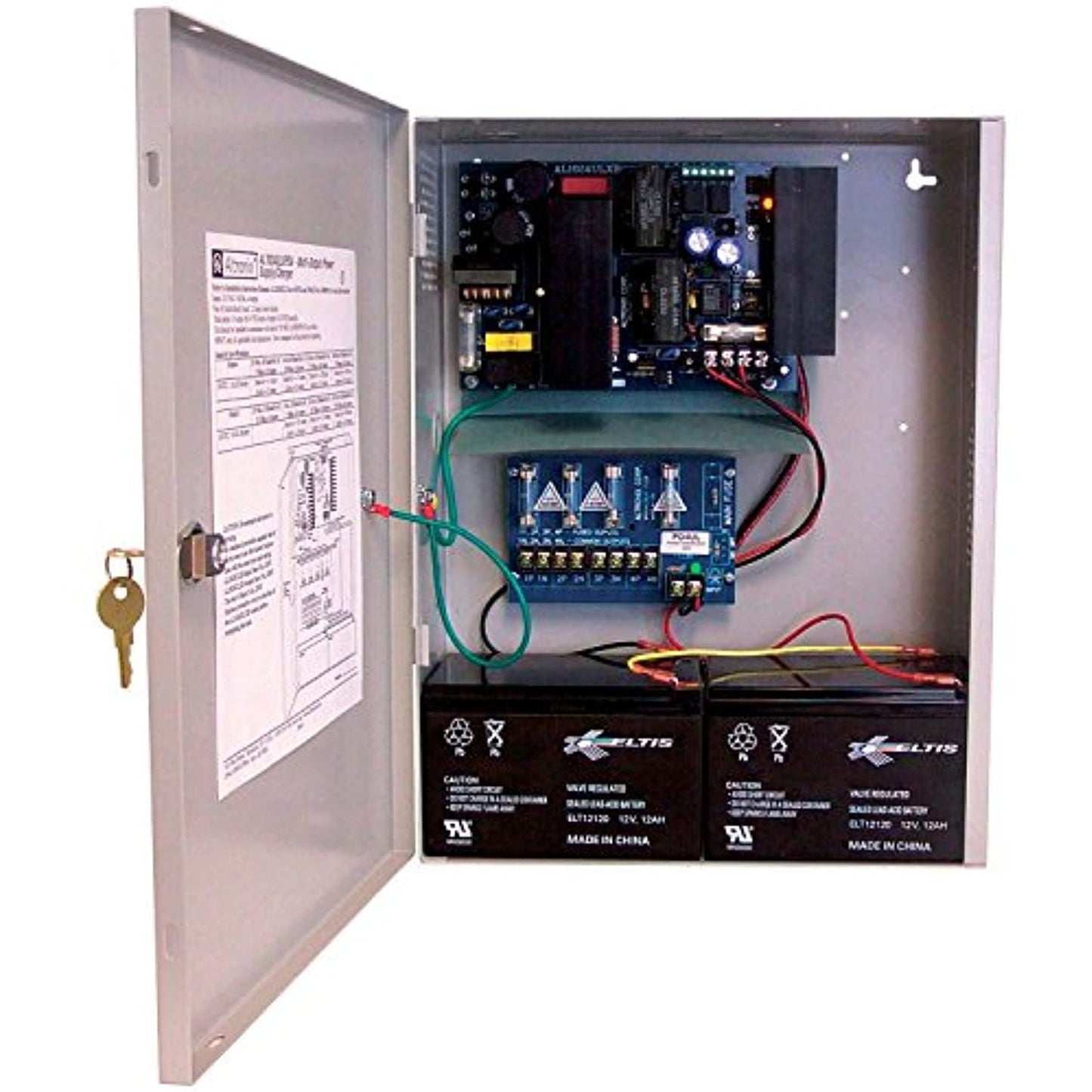

AL1024ULXPD4 is a multi-output power supply/charger that converts a 115VAC, 60Hz input into four (4) 24VDC non power-limited outputs.

Input

• Input 115VAC, 60Hz, 4.2A.
• Input fuse rated @ 3.5A/250V.

Output

• 24VDC output.
• 10A of continuous supply current for Access Control applications.
• 8A of continuous supply current for Fire Alarm applications.
• Four (4) fuse protected outputs.
• Output fuses are rated @ 3.5A/250VAC.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form “C” contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form “C” contacts).
• Battery presence supervision (form “C” contacts).

Visual Indicators

• AC input and DC output LED indicators.
