16 Fuse Out PWR SPL 24VDC 10A

Availability:

In stock

$405.15

Free shipping
  • 16 Fused Outputs
  • Short circuit and thermal overload protection.
  • AC Supervision & Battery Monitoring

Description

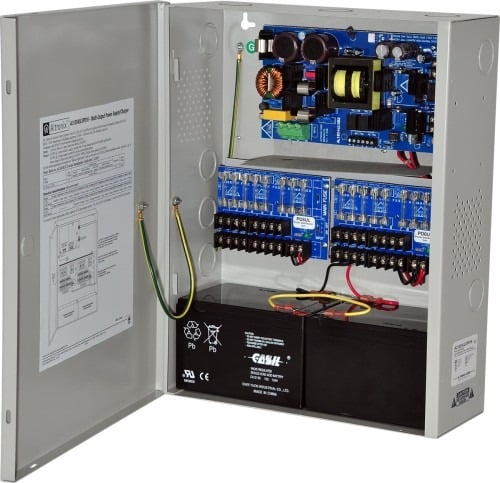

AL1024ULXPD16 is a multi-output power supply/charger that converts a 115VAC, 60Hz input into sixteen (16) 24VD non-power limited outputs.

Altronix AL1024ULX series are power supply/chargers that convert a 115VAC, 60Hz input into a single fused, four (4), eight (8) or sixteen (16) fuse or PTC protected outputs.
Outputs are 24VDC with a total of 10A max

    • Input 115VAC, 60Hz, 4.2A.
    • Input fuse rated @ 3.5A/250V.
  • Output
    • 24VDC output.
    • 10A of continuous supply current for Access Control applications.
    • 8A of continuous supply current for Fire Alarm applications.
    • Sixteen (16) fuse protected outputs.
    • Output fuses are rated @ 3.5A/250VAC.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.

Additional information

Weight 11.29981 lbs
Item Condition

New

MPN

AL1024ULXPD16

Brand

UPC

Resources

User ManualÂ
