Description

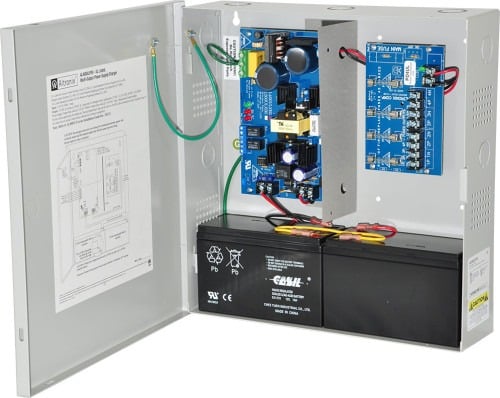

AL400ULPD4 is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) Class 2 Rated 12VDC or 24VDC power limited outputs.
-
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
-
Output
- 12VDC or 24VDC selectable output.
- 12VDC @ 4A or 24VDC @ 3A supply current.
- Four (4) Class 2 Rated fuse protected power limited outputs.
- Outputs are rated @ 3.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
-
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
