Description

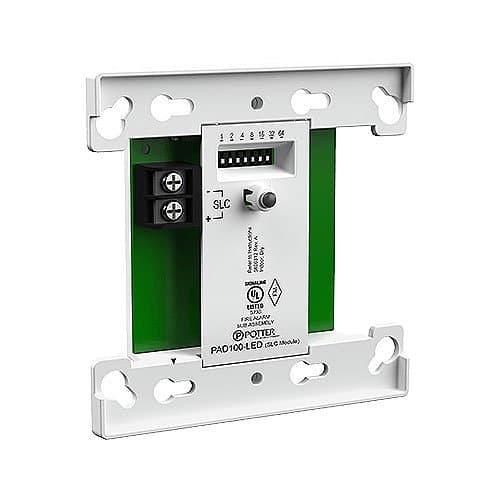

The PAD100-LED uses one (1) SLC loop address when used as an addressable indicator. The module mounts on either a 4″ square or double gang box. The PAD100-LED includes one red LED to indicate the modules status. In normal condition, the LED flashes when the device is being polled by the control panel. When activated, the LED will flash at a fast rate.
Main Features
- Single addressable red LED indicator
- Mounts in a standard 4″ or double gang box
- SLC Class A, Class X & Class B
- Wiring terminals accessible when mounted in box
- All wiring terminals accept 22 to 12 AWG
- Product includes a 5 year warranty
- UUKL Listed for Smoke Control
