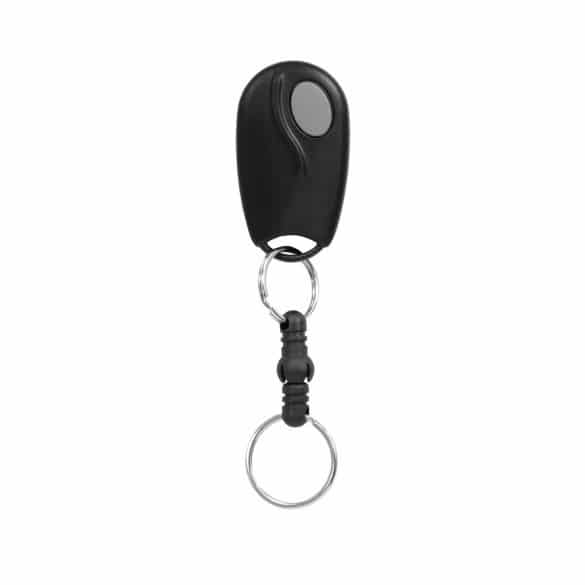

Linear ACT-31C 1-Channel Custom Block Coded Key Ring Transmitter


Special Order


Free shipping

Compatible with all Linear access receivers and controllers
Supplied with quick-disconnect key ring
Power: Two 2016 batteries
Codes: Custom block coded in MegaCode format
RF frequency: 318 MHz
Dimensions: 1.25″ W x 2.25″ H x .48″ D


The Model ACT-31C 1-Channel Custom Block Coded Key Ring Transmitter is designed for use with Linear’s access control products. The Model ACT-31C is a single-channel device supplied with a quick-disconnect key ring. Also included are lithium batteries with a five-year service life. A unique 10-second time-out feature prevents the system from being shut down by a single transmitter transmitting continuously.

The transmitter is MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of code duplication. Because the receiver ”learns” each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter.

Custom block coded transmitters are factory programmed to your choice of sequential transmitter ID codes. When used with a Linear access controller, transmitters can be locally or remotely programmed into memory by entering the first and last codes of the block into the system. Facility codes can also be selected to further customize the system.

Part Number: ACP00939
