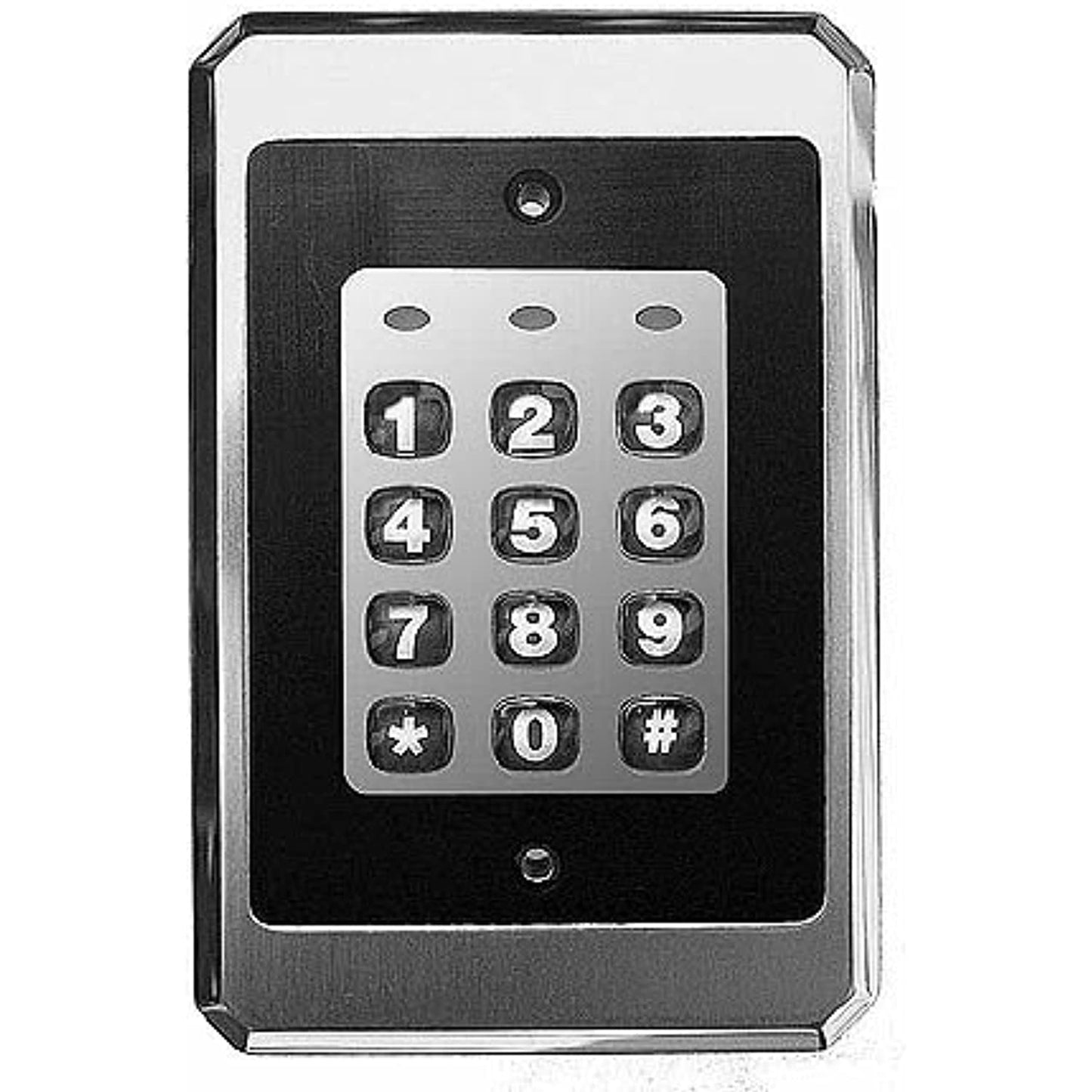

IEI International Electronics 212IL iL style keypad

Availability:

Out of stock

Want to be notified when this product is back in stock?

Free shipping
  • 120 users
  • 10-30 VDC; 12-24 VAC – auto adjusting

Description

The 212 Series keypads are designed for basic access control or code control for up to four individual devices (model dependent). These keypads are the perfect choice for controlling electric or magnetic locks, security systems, elevator control, gate controls, or other types of equipment requiring on/off or momentary control inputs

Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LED’s to indicate operation status and provide the user with visual PIN entry confirmation. The i style keypad mounts to most standard single-gang electrical back boxes.

Backlit Keypad Features

  • Operating voltage: 12-24 VAC/VDC auto  sensing
  • Dimensions: 2.75″ W x 4.50″ H x 1.3 ” D
  • Dimensions with optional 293 relay module: 2.75″ W x 4.50″ H x 1.68″ D
  • Current draw: 94 mA maximum (add 30 mA for each relay)
  • Temperature tolerance: -20F to 130F

Additional information

Weight 1 lbs

resources

User Manual
