Description
The single gang TS-7 and narrow stile TS-9 request to exit stations, with rectangular push button, provide a convenient way to add authorized access control for a variety of applications. TS-7 and TS-9 are available with timer relay for applications that require door to remain unlocked for a specified time.
- TS-7 switch mounted on single gang wall plate with 430 stainless steel finish

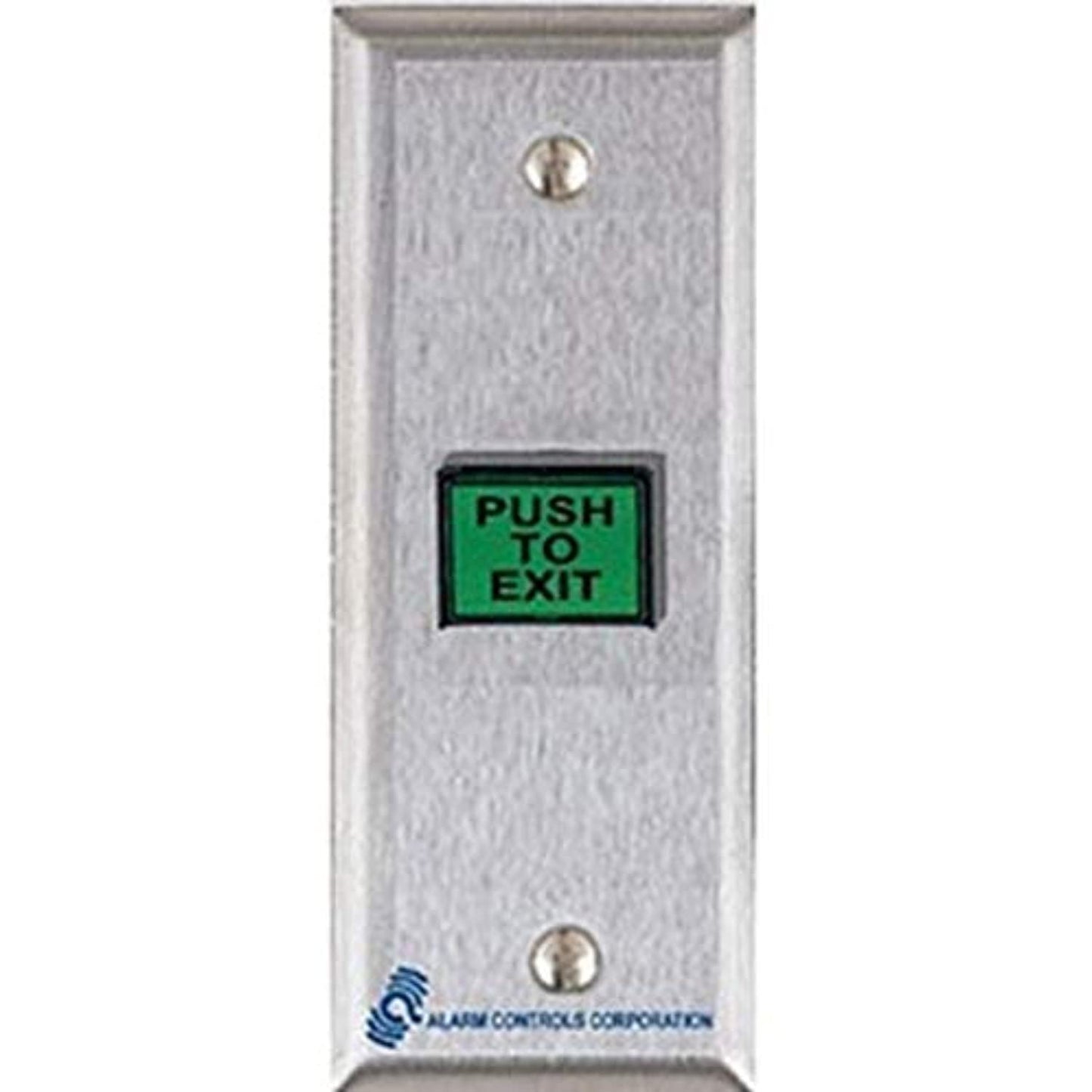

- TS-9 switch mounted on narrow 1-3/4″ wall plate with 302 stainless steel finish
- 5/8″ x 7/8″ green rectangular push button; illuminated with hi-brightness LED
- Button labeled “PUSH TO EXIT” for easy to follow egress instructions
- Momentary DPDT action switch
Options
- TS-7, TS-9L with latching action switch
- TS-7T, TS-9T with timed output (Timer is adjustable 2 to 45 seconds)
- Finishes: multiple plate options available
- Custom legends available as custom part
