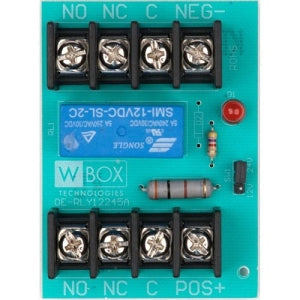

UltraTech 0E-RLY12245A 5A 220VAC/28VDC Relay Module, 12 or 24V DC
UltraTech 0E-RLY12245A 5A 220VAC/28VDC Relay Module, 12 or 24V DC
MPN: RLY12245A
Regular price
$27.98
Regular price
Sale price
$27.98
Shipping calculated at checkout.
200 in stock
Quantity
Couldn't load pickup availability
The UltraTech 0E-RLY12245A 5A 220VAC/28VDC Relay Module at 5A DPDT applications include intrusion, access control, video surveillance and other systems requiring control or activation of electronic devices. Operations include dry contacts, latching dry contacts, polarity reversal and line seizure. Includes double-sided foam mounting tape.
UltraTech 0E-RLY12245A 5A 220VAC/28VDC Relay Module Main Features
- 5 AMP 220V AC/28V DC Relay Module
- 5A 220V AC OR 28V DC DPDT Contacts
- 12 OR 24V DC Selectable Operation
- 75 MA Current Draw
- AC Input Required: 9.6VA
- Operating Temp: -13°F to 131°F (-25°C to 55°C)
- Storage Temp: -13°F to 158°F (-25°C to 70°C)
- Humidity: 0 TO 95%
