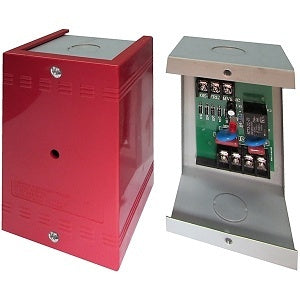

UltraTech 0E-FRLYMVENC Control Relay Multi-Voltage, Standalone
UltraTech 0E-FRLYMVENC Control Relay Multi-Voltage, Standalone
Regular price
$31.49
Regular price
Sale price
$31.49
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
0E-FRLYMVENC is a stand-alone, multi-voltage relay providing 10A resistive contacts for system status, electrical loads and general purpose switching. Contacts operate via one of four input voltages by wiring to the corresponding input terminal. A red LED indicates that the relay coil is energized. Applications include fire alarm control, security systems, HVAC, temperature control, lighting systems and energy management.
Main Features
- Selectable 24V DC or 24/120/230V AC input voltage
- Polarized Coil Input: DC Control Input Only
- Dry Form C SPDT contacts
- Red LED indicates relay coil is energized
- Six (6) 12" 18AWG flying leads
- Current Draw: 11mA@18VDC; 22mA@35VDC; 38mA@18VAC; 76mA@35VAC; 29mA@120VAC, 60Hz
- 18 ga. CRS plate back box, red ABS 94V-0 rated cover
- Includes mounting / wiring hardware
- Operating Temperature 332°F to 120°F (0°C to 49°C), humidity range 10 - 85% RH
- UL 864 Listed Fire Alarm Control Equipment; CSFM Listed , MEA Accredited
