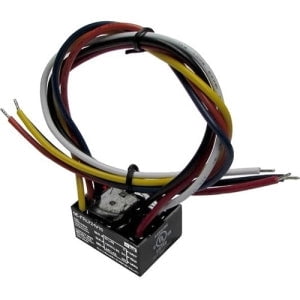

UltraTech 0E-FRLY24V10 10A Multi-Voltage Relay Module

UltraTech 0E-FRLY24V10 10A Multi-Voltage Relay Module

MPN: 0E-FRLY24V10

$21.46
$21.46
Sale Special Order
Shipping calculated at checkout.

1666 in stock
View full details
0E-FRLY24V10 is an encapsulated multi-voltage relay suited to applications requiring a remote relay for control or status feedback. It includes long flying leads with selectable input voltage. A red LED indicates that the relay coil is energized. Applications include fire alarm control, security systems, HVAC, temperature control, lighting systems and energy management. 0E-FRLY24V10 is UL864 listed for Fire Alarm Control Equipment. Includes mounting/wiring hardware.

Main Features

  • Voltage Input: 24V DC, 24V AC, 120V AC
  • Polarized Coil Input: DC Control Input Only
  • Contacts: Dry Form C SPDT
  • Selectable 24VDC, 24VAC or 120VAC input voltage
  • Red LED indicates relay coil is energized
  • Six (6) 12" 18AWG flying leads
  • ABS plastic housing, epoxy resin potting
  • Current Draw: @24VDC = 15mA; @24VAC, 60HZ = 52mA; @120VAC, 60HZ = 38mA
  • Operating Temperature 32°F to 120°F (0°C to 49°C), humidity range 10 - 93% RH
  • UL 864 Listed Fire Alarm Control Equipment; CSFM Listed, MEA Approved
