Ultratech
UltraTech 0E-FRLY12V7 7A Multi-Voltage Relay Module
UltraTech 0E-FRLY12V7 7A Multi-Voltage Relay Module
Regular price
$31.98
Regular price
Sale price
$31.98
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

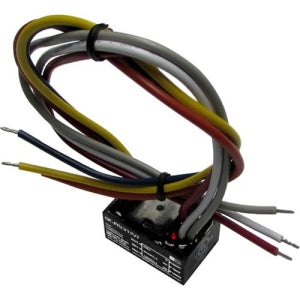

0E-FRLY12V7 is an encapsulated multi-voltage relay suited to applications requiring a remote relay for control or status feedback. It includes long flying leads with selectable input voltage. A red LED indicates that the relay coil is energized. Applications include fire alarm control, security systems, HVAC, temperature control, lighting systems and energy management. 0E-FRLY12V7 is UL864 listed for Fire Alarm Control Equipment. Includes mounting/wiring hardware
Main Features
- Voltage Input: 12V DC, 24V DC
- Polarized Coil Input: DC Control Input Only
- Dry Form C SPDT contacts
- Selectable 12 or 24VDC input voltage
- Red LED indicates relay coil is energized
- Six (6) 12" 18AWG flying leads
- ABS plastic housing, epoxy resin potting
- Contact Ratings: 5VDC = 250μA/ 0.35 P.F.; 24VDC = 7A/ 0.35 P.F.; 120VAC = 7A
- Operating Temperature 32°F to 120°F (0°C to 49°C), humidity range 10 - 93% RH
- UL 864 Listed Fire Alarm Control Equipment; CSFM Listed, MEA Approved
