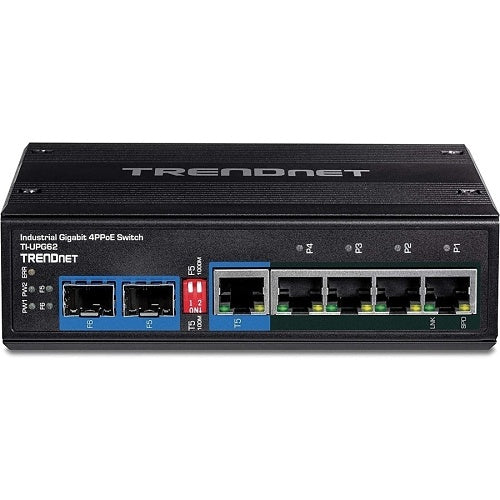

TRENDnet TI-UPG62 6-Port Hardened Industrial Gigabit Ultra PoE DIN-Rail Switch

TRENDnet's TI-UPG62 is a reliable IP30 unmanaged DIN-rail Ultra PoE switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit Ultra PoE ports, 240 W PoE power budget, two dedicated SFP slots, and a 12 Gbps switching capacity. Dual redundant power inputs and a power failure alarm relay. Ultra PoE A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4 W), PoE+ (30 W) or Ultra PoE (60 W) power. Fault Tolerance Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure. Industrial Hardened Design Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.

 PoE Power Budget A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4 W), PoE+ (30 W) or Ultra PoE (60 W) power. Network Ports 4 x Gigabit Ultra PoE ports and 2 x dedicated SFP slots DIN-Rail / Wall Mounts IP30 rated metal enclosure with included DIN-rail and wall mount hardware Switching Capacity 12 Gbps switching capacity Redundant Power Dual redundant power inputs with overload current protection (power supplies sold separately, model TI-S24048) Alarm Relay Alarm relay triggered by power failure of primary and/or redundant power Jumbo Frame Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance Rated for Extreme Environments Rugged IP30 rated enclosure designed to withstand a high degree of vibration, shock, and operate within a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.

 Electro Magnetic Compliance Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards Certifications Rated for information technology (ITE) equipment (EN55022/24); industrial, scientific, and medical (ISM) Equipment (EN55011) Shock and Vibration Resistant Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6) Grounding Point Grounding point protects equipment from external electrical surges
