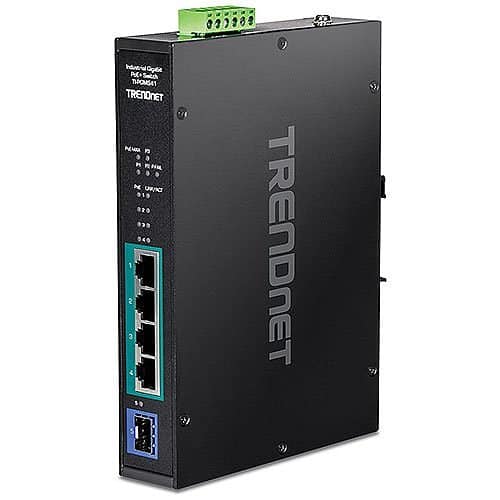

TRENDnet TI-PGM541 5-port Industrial Gigabit PoE+ DIN-Rail Switch

DEVICE INTERFACE: 4 x Gigabit PoE+ Ports; 1 Gigabit SFP Slot; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 10Gbps switching capacity, and a 120W @56V DC PoE power budget supplies up to four Power over Ethernet devices with PoE+ power. DIN-RAIL & WALL MOUNT KIT: This 5-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets. WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments.

 REDUNDANT POWER: The 5-port network switch has dual redundant power inputs with overload current protection (powersupply sold separately: models:TI-S12048 / 48VDC3000) ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power TRENDnet LIFETIME PROTECTION: The TI-PGM541 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer Protection. NDAA / TAA compliant (U.S. and Canada only) TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM541, has four gigabit PoE+ ports with a 120W PoE power budget, plus one gigabit SFP slot for long distance fiber applications. Users are able to connect four PoE+ devices to the switch, while still providing one gigabit SFP slot for an additional network connection. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments. PoE PowerA 120W PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power. Fault Tolerance Features redundant power inputs with overload current protection and output alarm relay.

 Industrial Hardened Design Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).NETWORKING SOLUTION | FEATURES | Full PoE+ Power Budget Supplies up to 30W of PoE/PoE+ power per port with a 120W PoE power budget Switching Capacity10Gbps switching capacity Jumbo Frame Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance Network Ports4 x Gigabit PoE+ ports and 1 x Gigabit SFP slot Redundant PowerRedundant power inputs with overload current protection (power supply sold separately, models: TI-S24048, 48VDC3000)Wide Operating Temperature Rated for an operating temperature range of -20° - 65°C (-4° - 149°F)DIN-Rail/Wall MountsIP30 rated metal enclosure with included DIN-Rail and wall-mount hardware Alarm Relay Alarm relay triggered by power failure of primary and/or redundant power Grounding Point Grounding point protects equipment from external electrical surges
