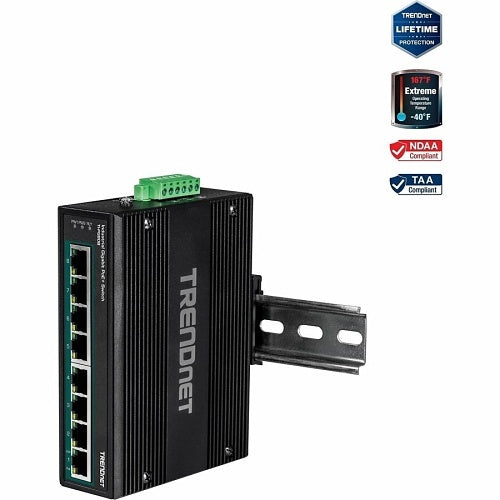

TRENDnet's 8-Port Industrial Gigabit PoE DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE ports and a 200W PoE power budget. Users are able to connect eight PoE devices to this industrial variable voltage PoE switch for high-speed connectivity to the network. The industrial variable voltage PoE switch is equipped with a rugged IP30-rated metal enclosure and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° to 75°C (-40° to 167°F) for industrial environments.
Dual 24-56VDC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay. PoE Power The industrial variable voltage PoE switch features a 200W PoE power budget and supplies up to eight Power over Ethernet devices with PoE power. Fault Tolerance. The industrial variable voltage PoE switch features dual 24V-56V DC power inputs for redundancy with overload current protection. Industrial Design Equipped with a rugged IP30-rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° to 75°C (-40° to 167°F). Package contents TI-PG80B Quick Installation Guide, Removable terminal block DIN-Rail and wall mount kit.
What’s Included
- 8-Port Industrial Gigabit PoE+ DIN-Rail Switch
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall Mount Kit
Main Features
- 8x Gigabit PoE+ ports
- PoE power budget 120W at 24V - 200W at 48V
- 16 Gbps switching capacity
- Power supply sold separately (models TI-S24048, TI-S12024)
- Hardened IP30 rated metal switch
- Includes DIN-Rail and wall mounts
- Operating temperature range of -400 to 750°C (-400 to 1670°F)
- Dual 24-56VDC power inputs for redundancy
- Power supply sold separately (models TI-S15052, TI-S24052, TI-S12024, TI-S24048)
