System Sensor

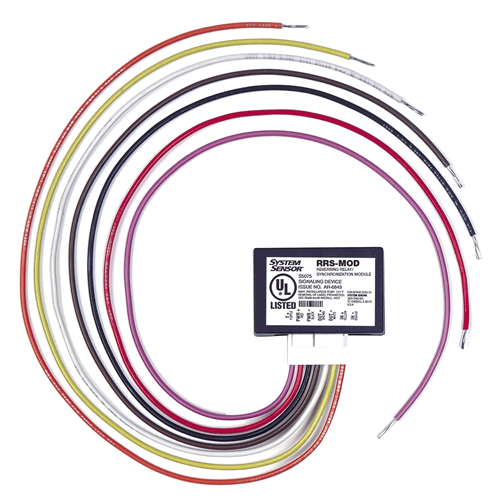

SYSTEM SENSOR RRSMOD REVERSE RELAY MODULE FOR i3

SYSTEM SENSOR RRSMOD REVERSE RELAY MODULE FOR i3

Regular price $50.61
Regular price $63.57 Sale price $50.61
Sale Special Order
Shipping calculated at checkout.

Quantity
View full details

The RRS-MOD reversing relay/synchronization module enhances the operation of 2- and 4-wire i3™ Series detectors equipped with a sounder. Installation ease. The RRS-MOD reversing relay/synchronization module includes a Velcro® attachment for easy installation into the fire alarm control panel cabinet. A quick-connect harness and color coded wires simplify connections. Intelligence. The RRS-MOD module’s design is flexible to accommodate virtually any application. It is compatible with both 2- and 4-wire i3 Series detectors operating over 12 V and 24 V systems.

The module can be used with either bell/alarm, alarm relay, or NAC outputs, and its field selectable switch accommodates both coded and continuous alarm signals. Instant inspection. To meet fire alarm requirements, the RRS-MOD reversing relay/synchronization module activates all i3 sounders on a loop when an individual sounder alarms. Additionally, it synchronizes the output of the i3 sounders, regardless of whether the panel’s alarm signal is continuous or coded, to ensure a clear alarm signal.

Main features

  • Is compatible with 2- and 4-wire i3 detectors equipped with a sounder
  • Activates all i3 sounders on a loop when one alarms
  • Synchronizes all i3 sounders on the loop for a clear alarm signal
  • Is usable with bell/alarm, alarm relay, or NAC outputs
  • Has a field-selectable switch to accommodate both coded and continuous alarm signals
  • Allows i3 detector silencing from the panel or keypad
  • Operates on 12 and 24 volt systems
