System Sensor

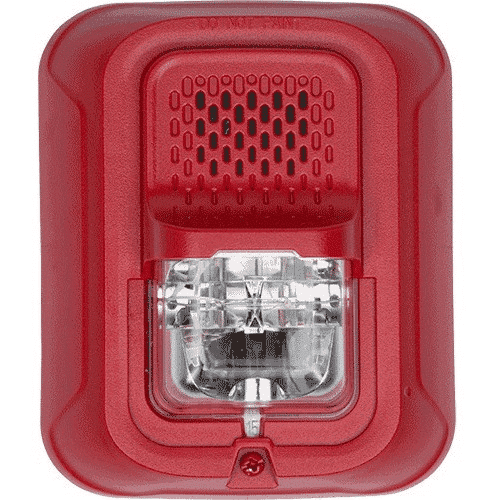

System Sensor P2RL-P L-Series Indoor Selectable Output Horn Strobe

System Sensor P2RL-P L-Series Indoor Selectable Output Horn Strobe

Regular price $86.24
Regular price Sale price $86.24
Sale Special Order
Shipping calculated at checkout.

Quantity
View full details

System Sensor P2RL-P and P2WL-P are wall mount horn strobes with no markings and a clear lens. With selectable output this 2 wire horn strobe meets most application requirements. The low frequency sounder strobes were designed to address the NFPA 72 sleeping space requirements that require a low frequency notification appliance that operates within frequency range of 520 Hz ± 10% and is of a square wave tone. Like the entire L-Series product line they include a variety of features that increase their application versatility while simplifying installation.

All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults. To further simplify installation and protect devices from construction damage, L-Series uses a universal mounting plate with an onboard shorting spring, so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to a suit a wide range of application requirements using field-selectable candela settings, 24- volt operation, and a rotary switch for 520 Hz low frequency sounder tones.

Features & Benefits:

  • 520 Hz ± 10% square wave tone, NFPA compliance
  • Full candela range plus High/Low tone options to optimize current draw for a wide variety of applications
  • Field-selectable candela settings. Wall units: 15, 30, 75, 95, 110, 135, and 185. Ceiling units: 15, 30, 75, 95, 115, 150, and 177
  • Rotary switch for High/Low, Temp3, Temp4, and Continuous settings
  • Plug-in design with minimal intrusion into the back box
  • Mounting plate shorting spring checks wiring continuity before device installation
  • Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices (Direct replacement for HW/R-LF and P2R/WH-LF)
  • Compatible with MDL3 sync module
  • Round Sounder Strobes listed for ceiling and wall
  • Updated modern aesthetics
  • Available in Red and White
