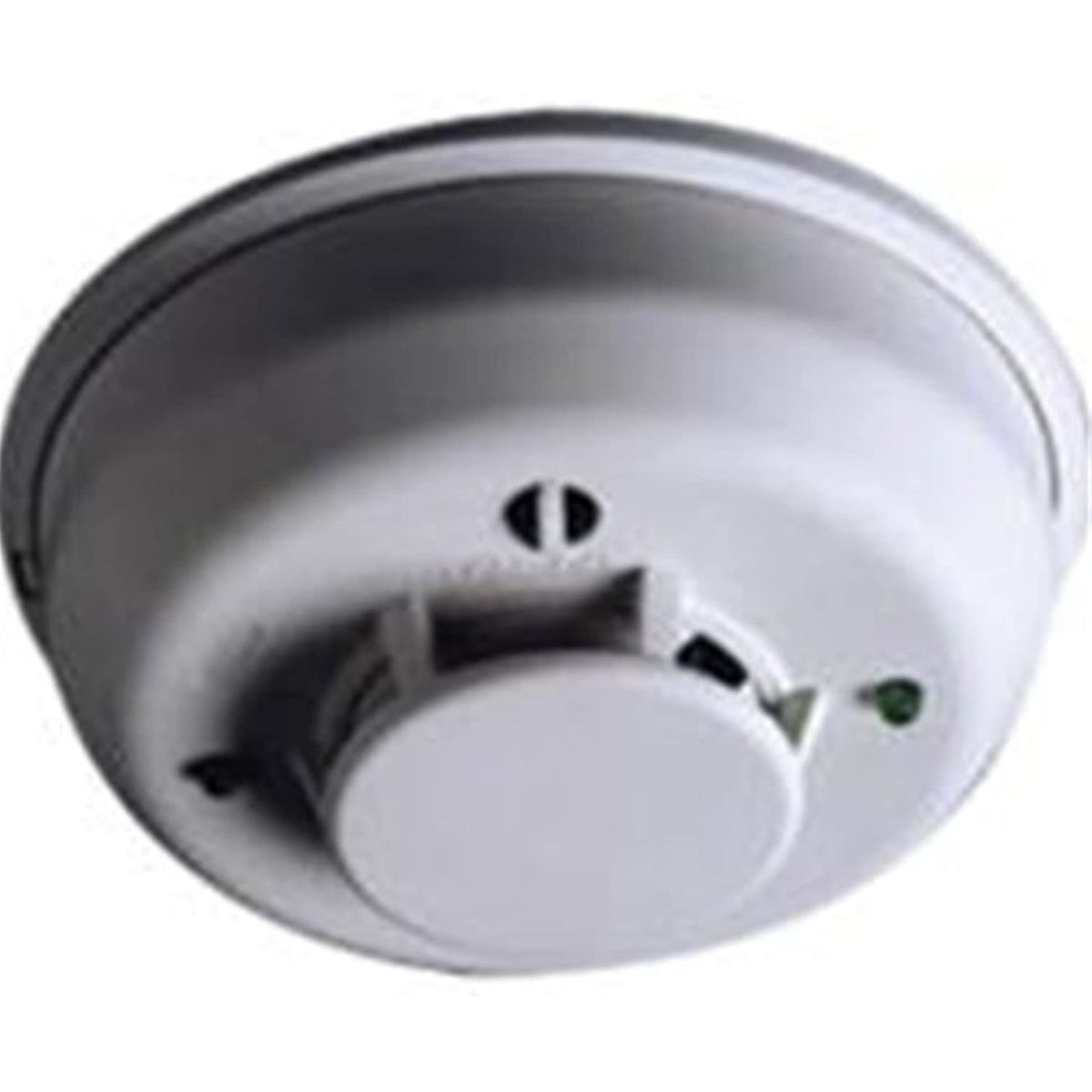

System Sensor 4WTAR-B 4wire photo w/therm Detector

System Sensor i3 Photoelectric sounder and relay smoke detector applies the guiding principles of installation ease, intelligence, and instant inspection in a series of specialty conventional devices. To reduce the likelihood of nuisance alarms, all i3 detectors are equipped with both drift compensation and smoothing algorithms. These capabilities minimize both short- and long-term causes of nuisance alarms, such as RF interference and dust accumulation.

When connected to the 2W-MOD2 loop test/ maintenance module or an i3 Readyâ„¢ panel, 2-wire i3 detectors can generate a remote maintenance signal when in a maintenance or freeze trouble condition. To measure the sensitivity of any i3 detector, the SENS-RDR displays the reading, in terms of percent-per-foot obscuration, within seconds. i3 has red and green LEDs to simplify local status indication during power-up, standby, alarm, maintenance, and freeze trouble conditions.

When in alarm, i3 sounder models generate an 85 dB temporal tone. If connected to the RRS-MOD reversing relay/synchronization module, all i3 sounders on the loop will activate when one detector is in alarm. The RRS-MOD also synchronizes i3 sounder output to ensure a clear audible signal

Photoelectric Sounder Smoke Detector Main Features

• 85 dB sounder
• Form C relay
• Isolated thermal sensor
• Plug-in design (base included)
• In-line terminals
• Flexible mounting options
• Stop-Drop ’N Lockâ„¢ attachment to the base
• Removable cover and chamber
• Remote maintenance signaling
• Drift compensation and smoothing algorithms
• Simplified sensitivity measurement
• Dual-color LEDs
