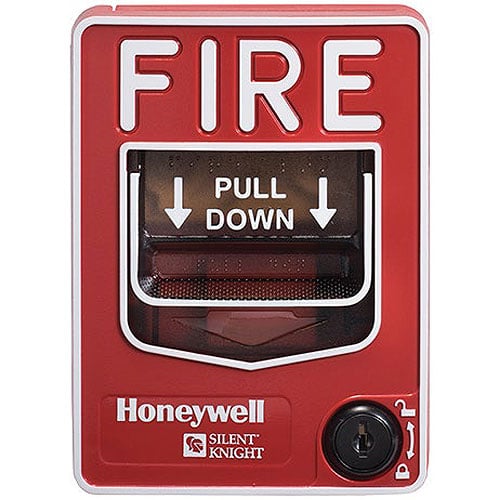

Silent Knight SK-PULL-SA Addressable Single Action Pull Station, Single Pole, SPST, N/O Switch

The SK-PULL-SA is a single action pull station requiring only one motion to activate the station.  The SK-PULL-SA  is for use with Honeywell Silent Knight Series fire control panel (FACP). Extremely easy to operate, the SK-PULL-SA provides a fast and practical means of manually initiating a fire alarm signal. The FACP recognizes each manual pull station by its specific address saving precious seconds in determining the location of an alarm.

Installation

The SK-PULL-SA  can be surface mounted to an SB-I/O surface back box or semi-flush mounted on a standard single-gang with a minimum depth of 2.13"(5.40 cm) or double gang or 4" (10.61 cm) square electrical box. You can also use the optional (System Sensor® PN BG-TR) trim ring if mounting the station Semi-flush.

Single Action Pull Station Features and Benefits

• Installer can open the station without causing an alarm condition
• Dual-color LED is visible through the handle of station blinks green to indicate normal operation and remains steady red in an alarm condition
• Key operated test and reset lock using lock plate actuator
• Key matches compatible FACP locks
• Meets ADA requirement for 5 lbs maximum pull force to active
• Meets the Americans with Disabilities Act Accessibility Guidelines (ADAAG) controls and operating mechanisms guidelines (Section 4.1.3[13])
• Shell, door, and handle molded from durable LEXAN®
• Reliable analog communications for trouble-free operation
• Braille text on station handle
• Rotary address switches for fast installation
• Handle latches in down position and the word Activated appears, clearly indicating the station has been pulled
• UL Listed, including UL 38, Standard of Manually Actuated Signaling System
• CSFM Listed
• MEA Listed
