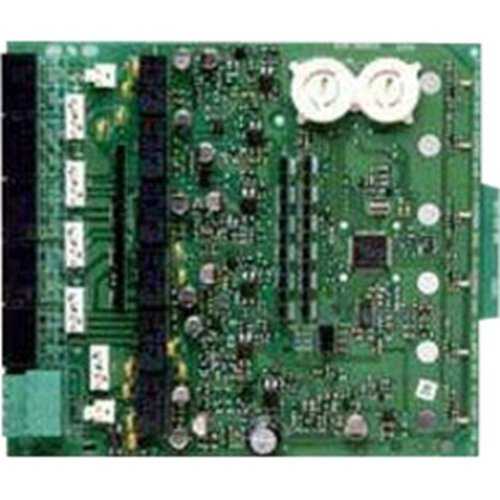

Silent Knight SK-CONTROL-6 6-Output Control Module

The SK-CONTROL-6 is an addressable notification module for use with Honeywell Silent Knight series fire alarm control panels (FACPs). The SK-CONTROL-6 provides supervised monitoring of wiring to load devices that require an external power supply or amplifier to operate, such as bells, horns, and strobes. It is capable of supporting Class B and Class A wiring. Upon command from the FACP, the SK-CONTROL-6 will disconnect the supervision and connect the external power supply across the load device.

The disconnection of the supervision provides a positive indication to the panel that the control relay actually turned on. The external power supply is always relay isolated from the SLC loop, so that a trouble condition on the power supply will never interfere with the rest of the system

Features

• Flexible solution for adding notification circuits where needed
• Removable 12 to 18 AWG plug-in terminal blocks
•  Support for Class B or Class A wiring
•  Individual LED for each module
•  Two module mounting in the IDP-ACB cabinet
• Unused modules can be disabled
•  Rotary address switches for fast installation
•  Mounting hardware included
• UL Listed
