Silent Knight

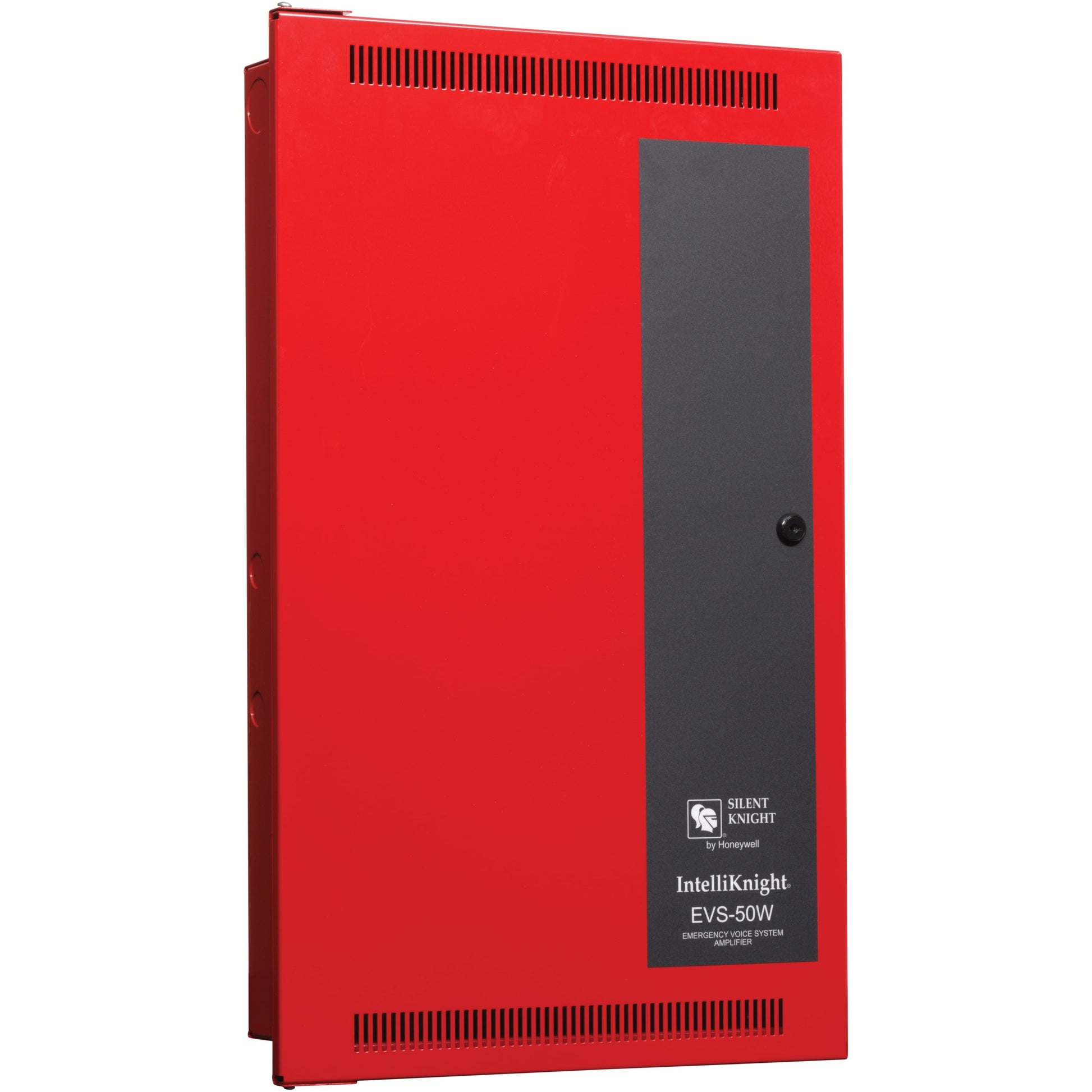

Silent Knight EVS-50W Intelligent 50W Amplifier

Silent Knight EVS-50W Intelligent 50W Amplifier

Regular price $1,484.83
Regular price Sale price $1,484.83
Sale Special Order
Shipping calculated at checkout.

Quantity
View full details

The EVS-50W is an intelligent 50 watt amplifier for use with the 5820XLEVS or 6820EVS. The EVS-50W is used to amplify the audio message for distribution throughout the facility. Since it is designed as a self-contained distributed amplifier it can be conveniently located near the area of protection to reduce wiring demands. Each EVS-50W is capable of producing 50-watts of audio power. Up to four EVS-50W's can be used on the voice evacuation system. The EVS-50W has its own power supply with battery backup and four speaker circuits which can be expanded to eight speaker circuits with the optional EVS-CE4. The EVS-50W is fully supervised by the main panel for trouble conditions

INSTALLATION

The EVS-50W can be surface or flush mounted.

COMPATIBILITY

The EVS-50W is compatible with the following Honeywell Silent Knight Series FACPs: • 6820EVS: Addressable fire alarm control panel with an emergency voice system, up to 1,110 addressable points, and four programmable buttons that can be programmed for routine or complex tasks • 5820XL-EVS: Addressable fire alarm control panel with an emergency voice systems and up to 792 addressable points

50 watt Amplifier Features

  •  Integrates directly with Silent Knight Series 6000 panels. Installation is easy as there is no need for  special programming or a separate dialer capture module
  •  Battery backup provided by the fire alarm control panel for enhance efficiencies and cost savings
  •  Communicators provide dual path cellular and IP reporting capability when combined with 6000 series panels
  •  UL 864 and NFPA 72 code compliant for sole, primary, or backup communications
  • Accounts can be easily managed through on-line management tools
  •  Remote mount up to 6000 feet to ensure best reception
  •  Includes Quality of Service (QOS) diagnostics via AlarmNet which conveys vital communicator information, including when messages are received, signal strength, and message path used
  •  Programmable supervision time from 1 to 60 minutes
  • Provides full data reporting using Contact ID format
