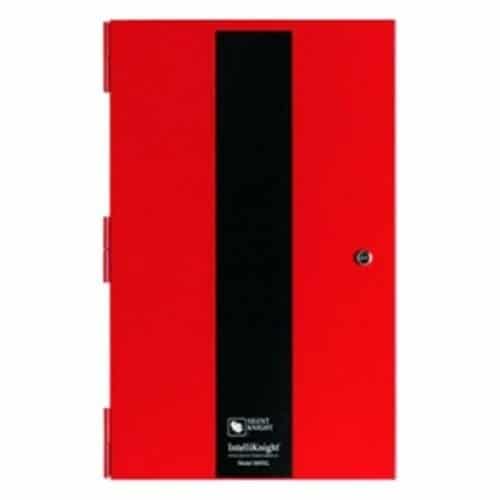

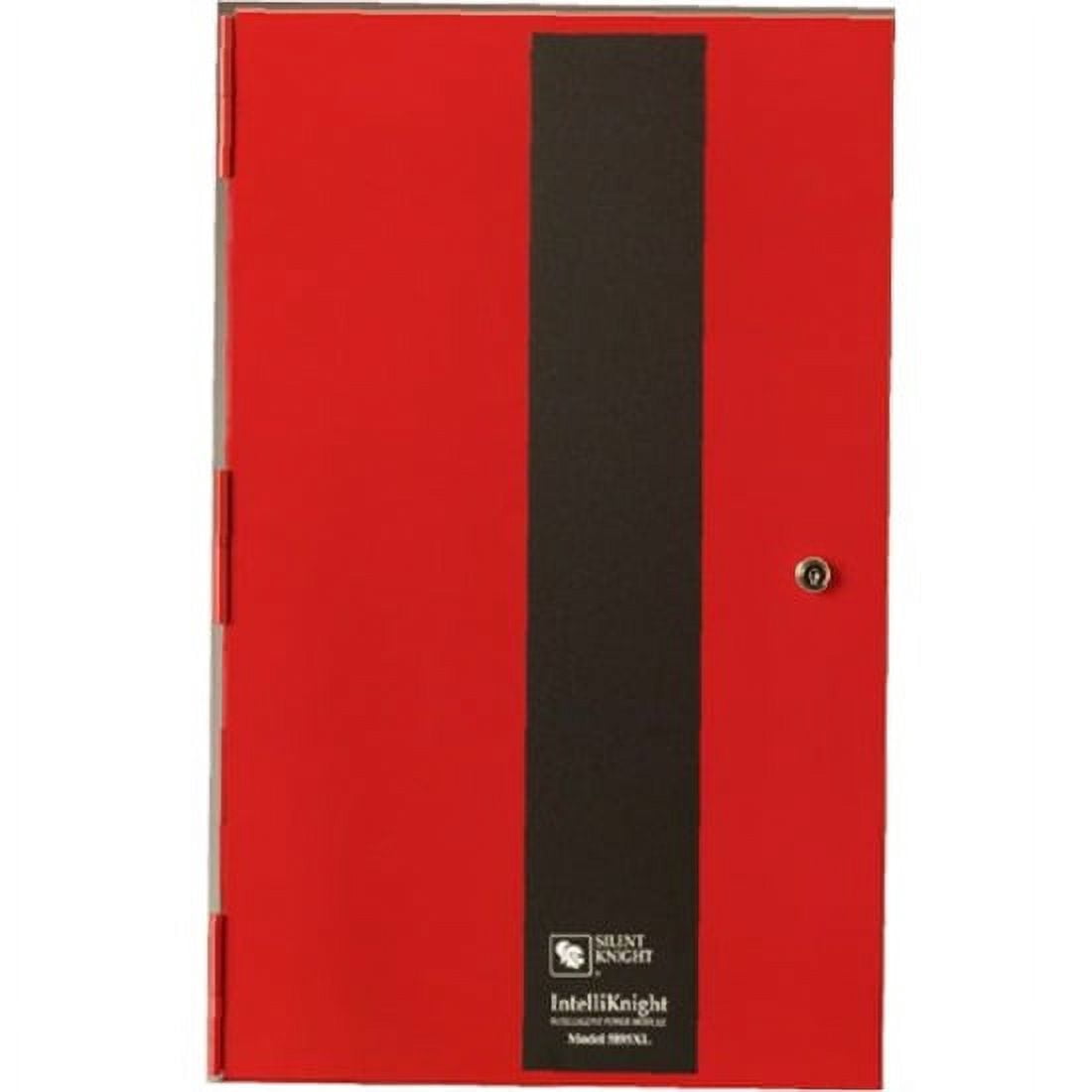

Silent Knight 5895XL Intelligent Power Module 6A Output Power, Flexput I/O circuits, Form Relay Contacts

The 5895XL intelligent power module is a 6 amp notification power expander. It provides its own AC power connection, battery charging circuit, and backup battery for use with Silent Knight addressable fire alarm control panels. Six Flexputâ„¢ circuits can be programmed as notification appliance circuits, conventional initiation circuit, or auxiliary power for constant, resettable or door holder power. The 5895XL also provides a conditioned SBUS circuit allowing up to an additional 6,000 feet of wiring for SBUS devices.

5895XL Intelligent Power Module Features and Benefits

• 6A output power
• Six Flexputâ„¢ circuits rated at 3A each can be programmed as notification appliance circuits, auxiliary power, or initiation circuits
• Supports Class A configuration for SBUS and Flexputâ„¢ circuits
• Each output individually mapped through fire alarm control panel programming
• Two form C programmable relays rated at 2.5A at 24VDC
• SBUS repeater conditions the RS-485 signal
• Room in cabinet to mount two 5815XL SLC expanders
• Built-in synchronization for appliances from AMSECO, Gentexâ„¢, Faraday, System Sensorâ„¢, and Wheelockâ„¢
• UL listed
