[{"id":300289851457,"handle":"fire-alarm-control-panels","title":"Fire Alarm Control Panels","updated_at":"2026-06-04T10:32:15-05:00","body_html":"\u003cp\u003eBrowse our selection of fire alarm control panels and related components from industry-leading manufacturers including Fire-Lite, Silent Knight, Honeywell, and Potter. Our inventory includes intelligent addressable fire alarm control panels, hardware kits and accessories, serial to fiber converter cards, LED annunciator modules, LTE\/IP fire communicators for alarm monitoring, and control panel batteries. Essential equipment for commercial fire alarm system installations, upgrades, and maintenance. These UL-listed panels provide reliable life safety protection for buildings of all sizes, from small commercial spaces to large multi-building campuses.\u003c\/p\u003e","published_at":"2026-01-08T11:12:42-06:00","sort_order":"best-selling","template_suffix":"abc","disjunctive":true,"rules":[{"column":"tag","relation":"equals","condition":"Fire \u003e Fire Control Panel \u003e Panels"}],"published_scope":"global","image":{"created_at":"2026-01-12T08:20:33-06:00","alt":null,"width":500,"height":500,"src":"\/\/www.fireandsafetyplus.com\/cdn\/shop\/collections\/dc32a835-ED-FX64R_lg.jpg?v=1768227633"}},{"id":301937950785,"handle":"quick-order","title":"Quick Order","updated_at":"2026-06-04T10:32:15-05:00","body_html":null,"published_at":"2026-02-18T13:35:25-06:00","sort_order":"best-selling","template_suffix":"quick","disjunctive":false,"rules":[{"column":"variant_price","relation":"greater_than","condition":"0"}],"published_scope":"web"}]
["783196014227","Featured Products","Fire \u003e Fire Control Panel \u003e Panels"]

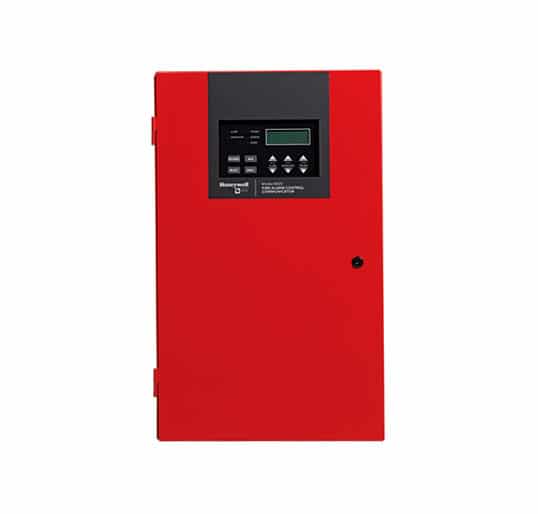

The 6820 is a address fire alarm control panel (FACP) that can be configured to achieve a point capacity of 1110 points and connect up to 17 panels in a single communication link. It has a built-in signaling line circuit (SLC), which can support 159 System Sensor® (SK) sensors and 159 SK modules or 127 Hochiki® (SD) devices per loop.
To increase point capacity, SLC loops can be added using the 6815 SLC expander for SK devices or the 5815LX expander for SD devices, increasing point capacity to a maximum of 1110 points for SK devices and 635 points for SD devices. It also has a built-in, dual-line POTS and IP communicator with additional cellular options available. The 6820 is SWIFT® wireless compatible.
1110 Point Control Panel Main Features
Connect up to 17 panels with convenient single point communications. Use either copper wire or fiber optic cable panel connectivity within the same linked system
Use Multiple Signal Line Circuits (SLCs) within one system limited only by maximum points available
Built-in dual path IP and POTs communication for reliable dual path backup
Built-in USB interface for convenient and speedy programming
SWIFT® capable for wireless detection
Convenient field-upgradeable firmware
Supports up to 16 remote annunciators
Programmable date setting for automatic and convenient Daylight Saving Time changes
4 x 20 annunciator with 80 character display and large easy-use keypad
Includes access to Jumpstart™, HFSS programming software and the SKST selection tool
NAC Circuits: 6; 6 amps power supply
Supports Class B (Style 4) and Class A (Style 6) configuration for SLC, SBUS, and Flexput circuit
Fire Alarm Control Panels FAQ
