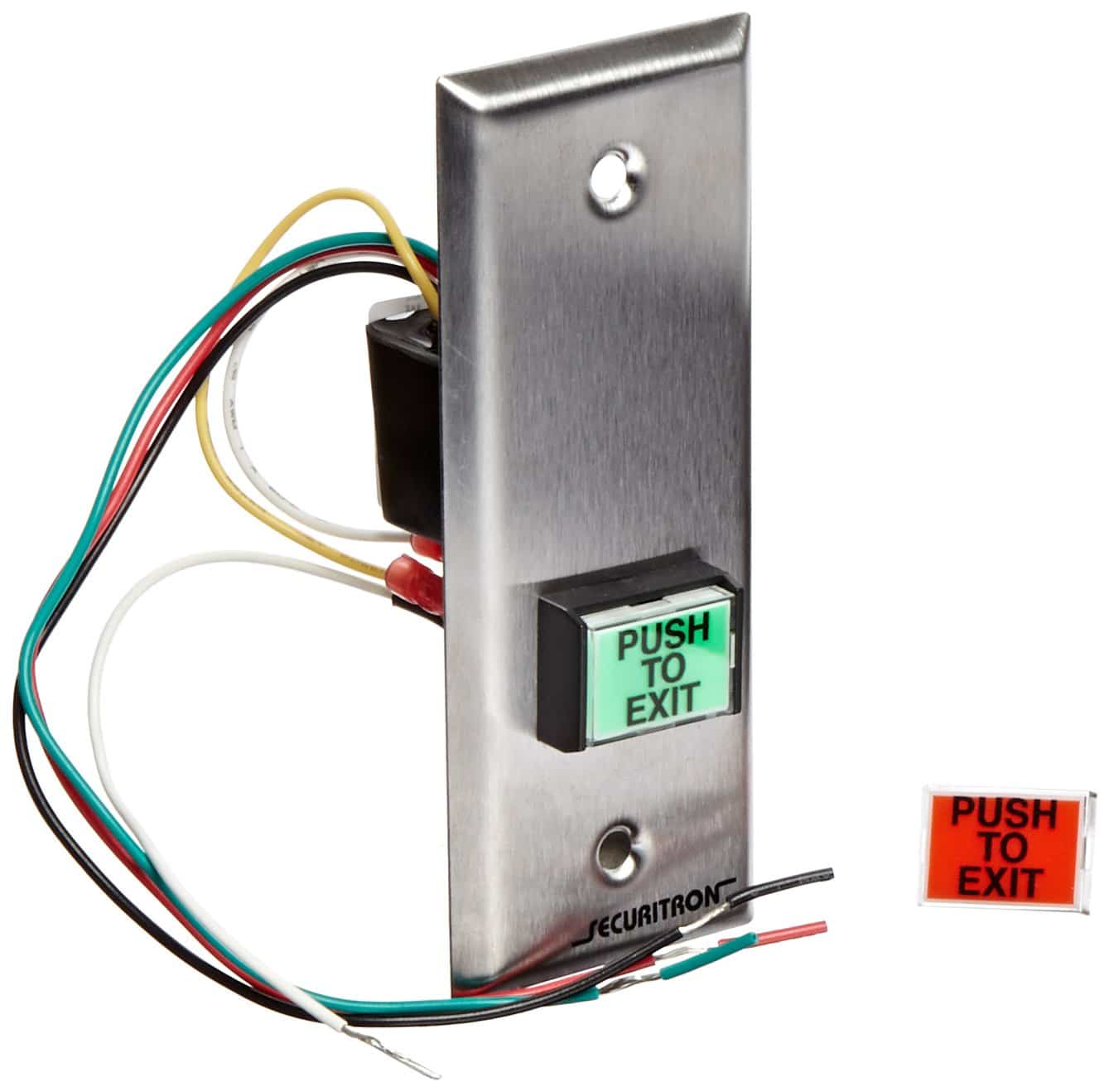

SECURITRON Push to Exit Button

Securitron EEB3N

Install the EEB Emergency Exit Button next to the door to provide additional safety and redundancy as required by code when using a motion detector for a request to exit device. Model EEB2 is a two-inch square, exit button, mounted on a stainless steel (S.S.), single gang key plate These units are intended only for release of a magnetic lock from the inside of a door. When the button is pressed, the lock releases for 30 seconds. If pressed again during the 30-second lock release period, the unit will “retrigger” starting a new 30-second lock release period. These buttons are specifically intended for installation on access controlled egress doors, as described in the Building Officials and Code Administrators (BOCA) code. A motion detector, such as the Securitron Model XMS, is the primary means of magnetic lock release on the door. The EEB2 or EEB3N exit button is employed as a backup means of releasing the lock in case of a problem with the motion detector. It should be noted that the exact release time will vary with temperature, but it will not be less than 30 seconds.

Main Features

• Emergency Exit Buttons offer additional safety, as required by code, for possible malfunction of motion exit sensor
• Mounted next to door
• Momentarily pressing the button releases door for 30 seconds
• Retriggerable
• Single Gang or Narrow Stile
• SPDT 3 Amp wet N/C contacts
• Operates on 12 or 24 VDC (must be same voltage as the installed lock)
• For indoor use only
• EEB2 includes switchable green, red and blue ADA lenses

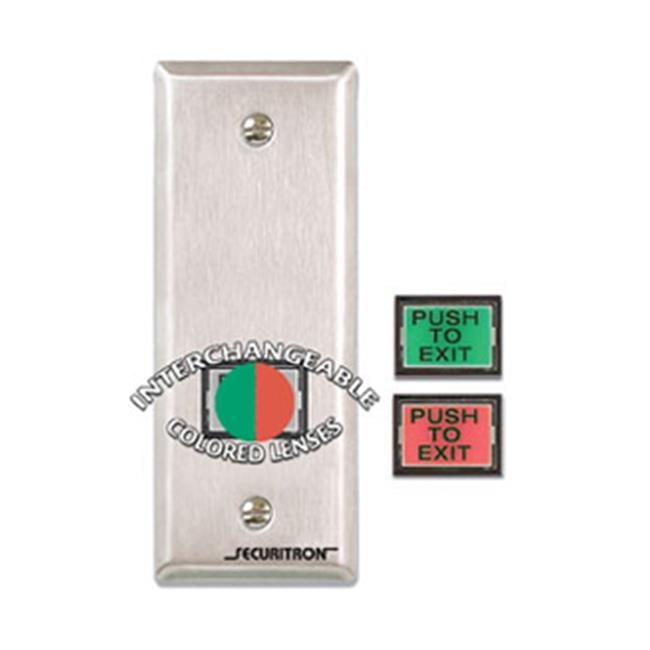

• EEB3N includes switchable green and red lenses
• UL Listed
