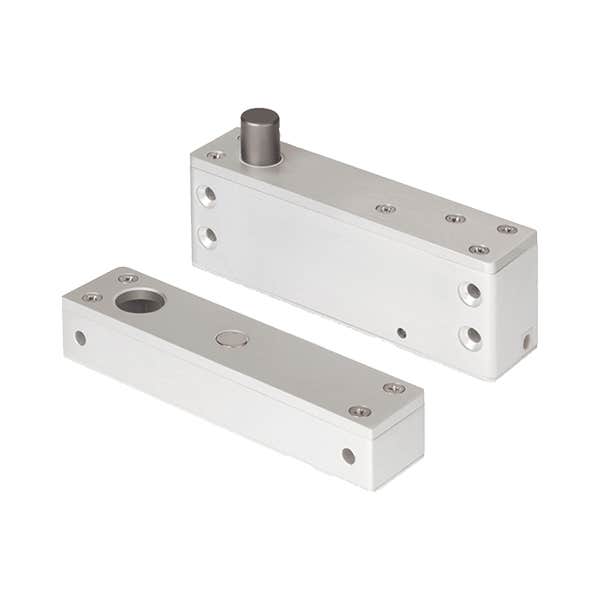

Seco-Larm SD-997B-1SQ MINI SURFACE-MOUNT ELECTRIC DEADBOLT, FAIL-SAFE, 12VDC

Seco-Larm SD-997B-1SQ MINI SURFACE-MOUNT ELECTRIC DEADBOLT, FAIL-SAFE, 12VDC

The SD-997B-1SQ adds deadbolt security to cabinet doors or drawers with the convenience of electrical operation. Its miniature size and surface-mount design allows it to be added to almost any location. Fail-safe operation unlocks the unit when power is lost. Door status monitoring is also available to tie into a control system.

• Fail-safe operation (unlocks if power is lost)
• Surface-mount design for easy installation
• Magnetic switch senses door position for positive locking
• Aluminum alloy bolt, ¹⁵/₃₂” (12.7mm) diameter, ⁹/₁₆” (14mm) throw
• Automatically relocks after 6 seconds if the lock was unlocked but the door was not opened
• Door open/close monitor (NC/COM)
• Lock delay timer adjustable between 0 and 3 seconds
• Use with an optional digital keypad for high security without a key
• Powered by a solenoid
