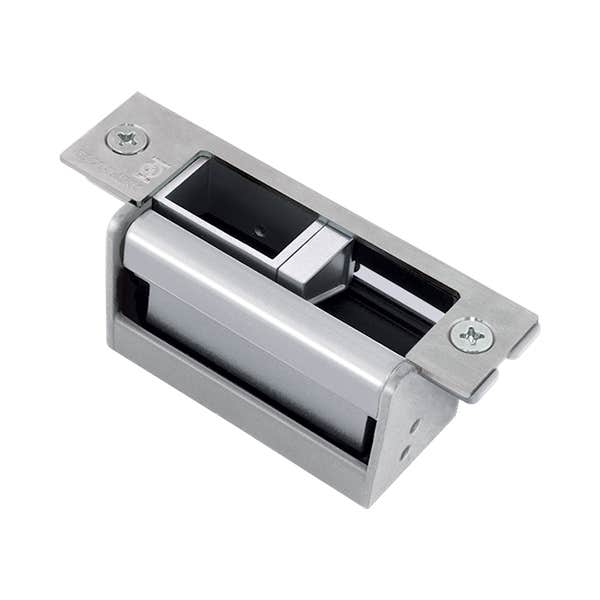

Seco-Larm SD-996C-NUVQ Electric Strike w/Vertical

Seco-Larm SD-996C-NUVQ Electric Strike w/Vertical

The SECO-LARM SD-996C-NUVQ Electric Door Strike with Vertical Adjustment is compatible with a wide range of lock types including cylindrical, mortise, and mortise exit devices and can be configured for use in wood, aluminum, or metal doors. Included are various ANSI-sized faceplates to match the door lock type. The strike is easily field-configurable for fail-safe or fail-secure applications.

• UL 294 and 1034 Listed
• 12/24 VDC Operation
• Vertical adjustable deadbolt opening, sliding shim keeper, and deadlatch ramp accommodates a wide range of lock types
• Accommodates deadbolts up to 1″
• Field selectable for fail-safe or fail-secure
• Includes 5 different stainless-steel faceplates
• Includes trim plate to hide gaps in installation
• Reversible non-handed design
• Static strength – 1,000 lbs. (454kg)
• Tested to 250,000 cycles (UL Tested)
• Low current draw: 300mA@12VDC & 150mA@24VDC
