Seco-Larm SD-996C-NUHQ Low Profile (1 IN) Univ Door Strike w/Horizontal Adj

Low Profile (1") Univ Door Strike w/Horizontal Adj

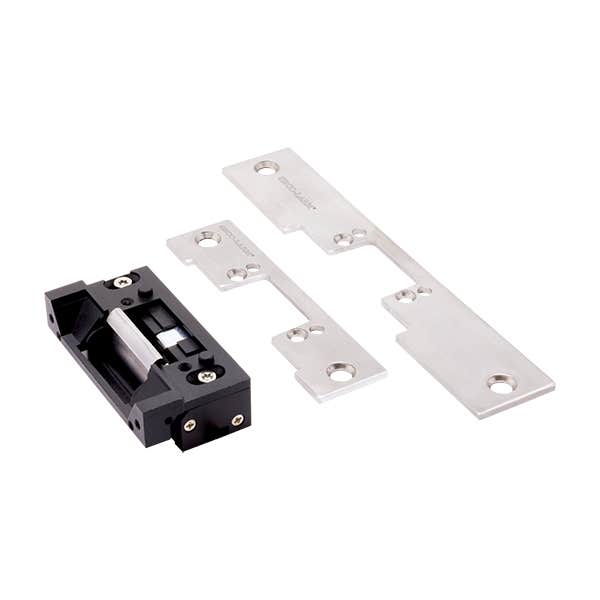

The SECO-LARM SD-996C-NUHQ Low-Profile Door Strike with Horizontal Adjustment can be used with virtually any cylindrical-locking system and can be configured for use in wood or metal frames. Included are two different ANSI-sized faceplates to match the door frame type. The strike is easily field-configurable for fail-safe or fail-secure applications. For indoor use only.

• Field selectable for fail-safe or fail-secure
• 12/24 VAC/VDC Operating voltage
• Static strength – 1,500-lb (6,673N)
• Dynamic strength – 70ft-lb (98J)
• Includes wiring harness and connectors for either 12VAC/VDC or 24VAC/VDC
• Trim plate included
• Mounting tabs included for mounting to hollow aluminum door
• Includes 2 faceplates for nearly any type of frame:
  • Metal door frames – SD-996SS-11Q
  • Wood door frames – SD-996SS-31Q
• Reversible non-handed design fits either right-hand or left-hand doors
• Low profile: Strike is only 1″ (26mm) deep for use with aluminum frames
• Optional lip-extension brackets available:
  • SD-995C-LE25 1″ Lip Extension
  • SD-995C-LE50 2″ Lip Extension
