Dormakaba usa inc. / Keyscan

RCI 0162 0 Series 3/4" Rim Strike

RCI 0162 0 Series 3/4" Rim Strike

Regular price $256.79
Regular price $400.52 Sale price $256.79
Sale Special Order
Shipping calculated at checkout.

Quantity
View full details

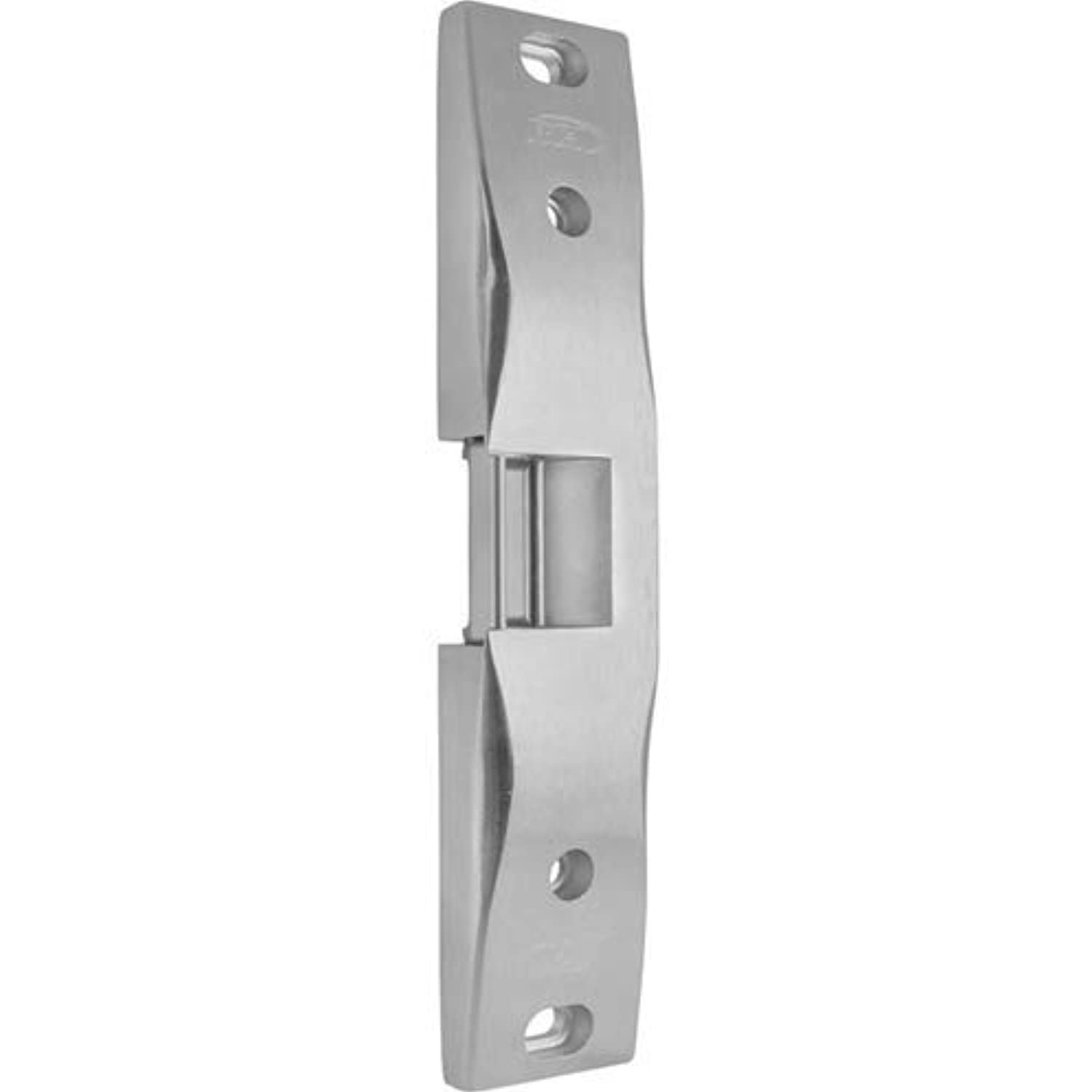

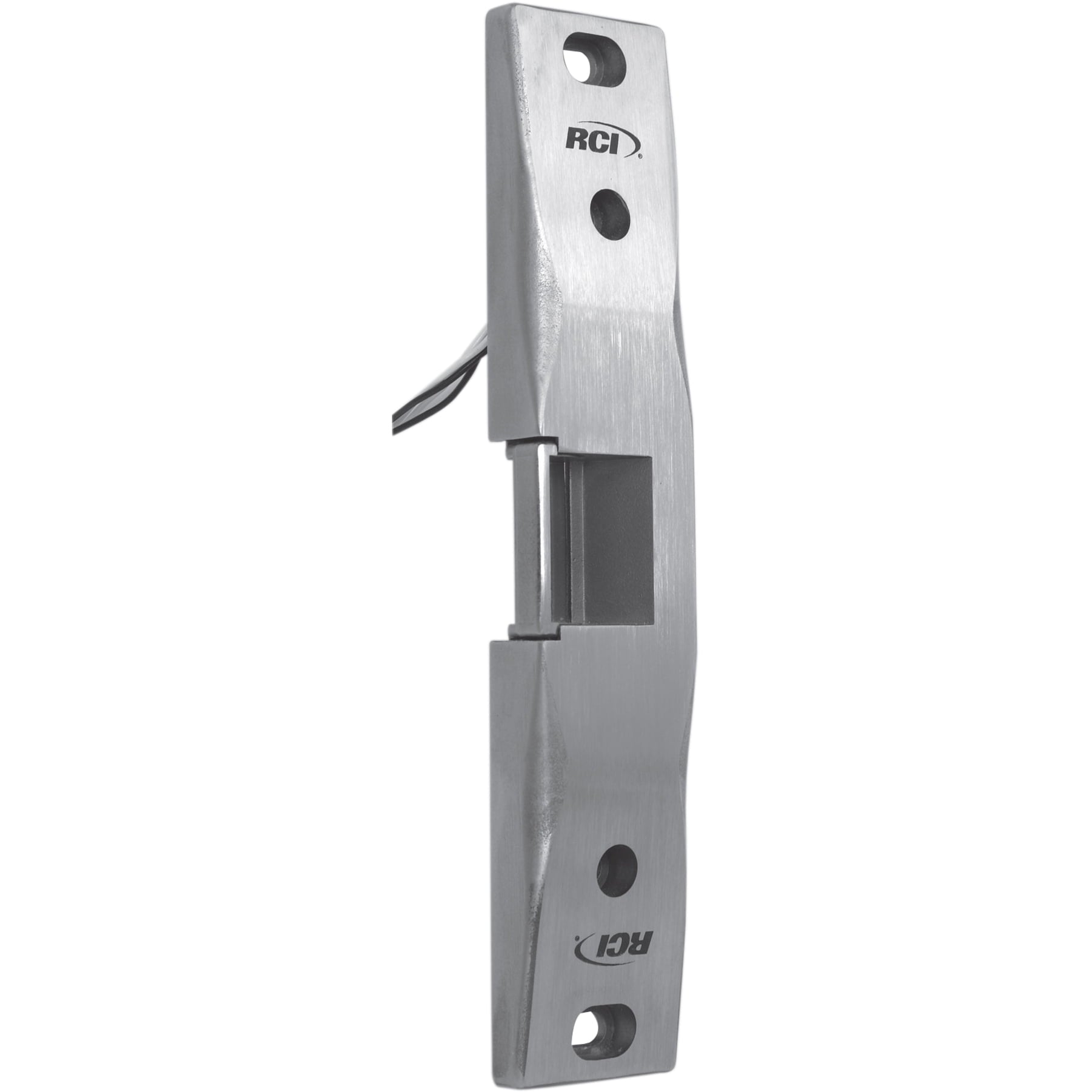

RCI 0162 0 Series 3/4” Rim Strike

The 0162 electric strike accommodates ½" to ¾" latch projection and is designed for use with Pullman latch rim exit devices. As a completely surface mounted strike the RCI 0162 requires no cutting of the door frame. The rugged stainless-steel strike accommodates hollow metal, aluminum and wood door frames. Its heavy-duty housing is reinforced to eliminate twisting in the case of imperfect frames. The one-piece conventional keeper promotes even load distribution for increased security in the event of an attempted forced entry.

Main Features

  • Completely surface-mounted – no frame cutting required
  • Accommodates 1/2” to 3/4” (13mm–19mm) latch projection
  • Horizontal adjustment ensure proper latch positioning to compensate for door misalignment – up to 1/4” (6.4mm)
  • 500mA Field-Selectable 12/24VDC & 12-24VAC
  • 1,500lbf Static 70ft-lb Dynamic
  • Fail-Secure
  • 500,000 Cycles (standard)
  • Optional 3-Hour Fire-Rated Model Available
  • Optional Latch Monitor Model Available
  • 5 Year Limited Warranty
