Potter

Potter RCDS-1 Releasing Circuit Disable Switch

Potter RCDS-1 Releasing Circuit Disable Switch

Regular price $133.82
Regular price Sale price $133.82
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Quantity
View full details

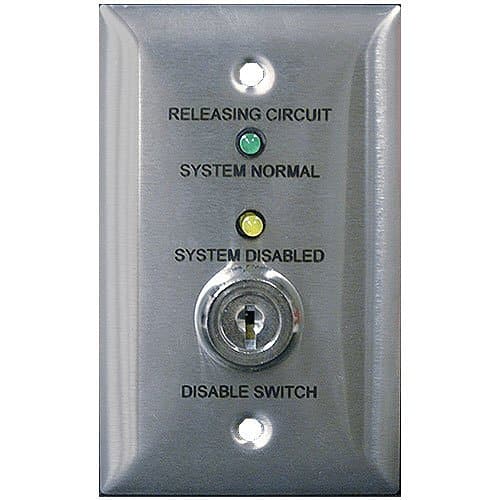

The device consists of a stainless steel faceplate, green LED, amber LED, and a switch assembly. It is designed to mount on a standard single gang electrical enclosure. Application The RCDS-1 complies with the requirements of NFPA 72 (National Fire Alarm and Signaling Code): The RCDS-2001 complies with the requirements of NFPA 2001 (Standard on Clean Agent Fire Extinguishing Systems):
  • Specifying a physical switch to disconnect the release circuit in place of a software controlled disconnect.
  • Creating a supervisory condition on the associated release panel

Main Features

  • Meets requirements of NFPA 72 and 2001
  • Colored LEDs indicate system status
  • Stainless steel plate mounts to single gang box
  • RCDS-1: key removable in both positions
  • RCDS-2001: key only removable in enabled position to comply with NFPA 2001
  • Compatible with any 24VDC system
