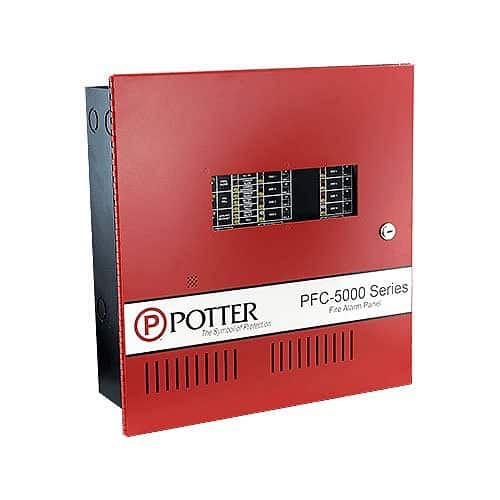

Potter PFC-5008 Microprocessor Based 8-Zone Conventional Fire Panel
Potter PFC-5008 Microprocessor Based 8-Zone Conventional Fire Panel
Regular price
$820.02
Regular price
Sale price
$820.02
Shipping calculated at checkout.
Special order — estimated 2–6 weeks lead time.
Special Order
Quantity
Couldn't load pickup availability
Potter's PFC-5008 Fire Alarm Control Panel is a microprocessor based unit designed for small to medium commercial, residential, multi-family, institutional and industrial occupancies. Fully configurable using DIP switches, it enables the user to configure the system to meet their specific requirements. The PFC-5008 is a PFC-5004E with the ZA42 expansion card factory installed. In addition, the preassembled kit contains a UDACT-9100 for digital communications.
The PFC-5008 comes standard with 8 Class B (Style B) Initiating Circuits which may be configured as 4 Class A (Style D) circuits. In addition, it comes equipped with 4 Class A/B (Style Z/Y) Indicating circuits which are each rated at 1.7 amps. The panel also includes a 5 Amp Power Supply which powers the system and supplies a 4-wire resettable regulated smoke power supply of 24 VDC 100mA maximum.
Main Features
- Each Indicating Circuit can be configured as Silence able or Non-Silence able
- Audibles may be configured as Steady, Temporal Code, California Code or March Time
- Predefined Initiating Circuits can be configured as Waterflow or Latching/Non- Latching Supervisory
- Built-in RS-485 Interface for RA8F Multiplexed Remote Annunciators (Up to 3 Annunciators)
- Interface for Remote Trouble Indicator
- Built-in Walk Test operation
- Auto Signal Silence
- Selectable Alarm Verification on Initiating Circuits
- Extensive Transient Protection
- Easy configuration via DIP switches
