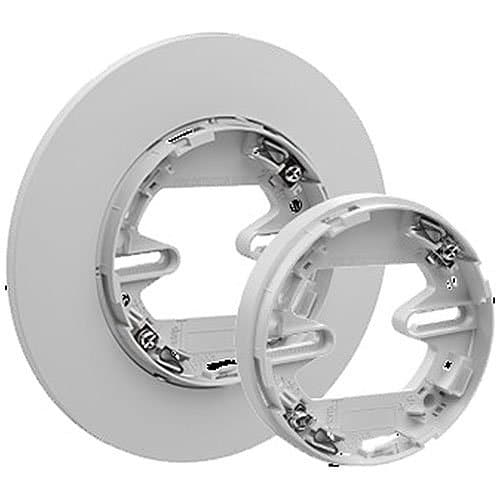

Potter PAD300-6DB 6" Detector Base, Low profile, Surface-mount, White
Potter PAD300-6DB 6" Detector Base, Low profile, Surface-mount, White
Regular price
$20.04
Regular price
Sale price
$20.04
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The PAD300-6DB and PAD300-4DB are low-profile, surface-mount bases used with Potter’s addressable detectors. The base uses screw clamp terminals that accept wire ranging from 22 to 12 AWG. When installed on recessed electrical boxes, the PAD300-6DB is wide enough to completely cover the back box and the immediate surrounding area. The base is equipped with a locking tab to deter unauthorized removal of the attached detector.
Main Features
- Terminals marked with polarity to assist with installation
- Duplicate Terminals for In-and-out SLC Wiring
- Terminals accept 22 to 12 AWG wire sizes
- Installs on Single Gang, Double Gang, Octagon or 4” Square Box
- Locking tab prevents unauthorized detector removal
- Product includes 5-year warranty
- 6” mounting base comes with trim plate cover
- compatible with: PAD300-HD Analog Heat Detector, PAD300-PCD Smoke and Carbon Monoxide Detector, PAD300-PD Smoke Detector
