Potter

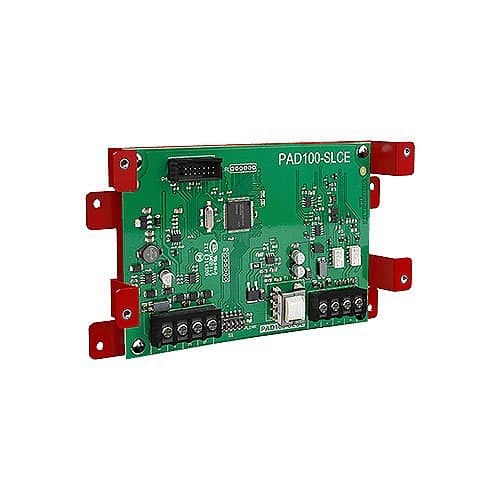

Potter PAD100-SLCE Addressable Loop Expander

Potter PAD100-SLCE Addressable Loop Expander

Regular price $551.14
Regular price Sale price $551.14
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Quantity
View full details

The Signaling Line Circuit Expander PAD100-SLCE allows up to thirty one additional loops. Each loop adds 127 addressable sensors or modules in any combination. The PAD100-SLCE may be configured for Class A or Class B wiring without the need for additional modules. The PAD100-SLCE communicates with the control panel via the Potter P-Link communication bus. The loop adder is mounted in either the control panel cabinet, the intelligent power supply, AE-2, AE-8 or the AE-14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.

Installation

The PAD100-SLCE is connected to the IPA and AFC/ARC series panels using a four wire RS-485 connection. This connection is power limited and supervised. The PAD100-SLCE can be installed in the AE-2 Accessory Enclosure, AE-8 Accessory Enclosure, AE-14 Accessory Enclosure or inside the large IPA or AFC series enclosure using the supplied bracket.

What’s Included

  • Addressable Loop Expander
  • Stacker Bracket

Main Features

  • No specialWiring for SLC or p-Link connection
  • SLC Class a, X or B capable
  • Mounts with included stacker bracket
  • May mount in panel, accessory cabinet, or pSN-1000/e power Supply
  • Product includes a 5 year warranty
  • UUKL Listed for Smoke Control
