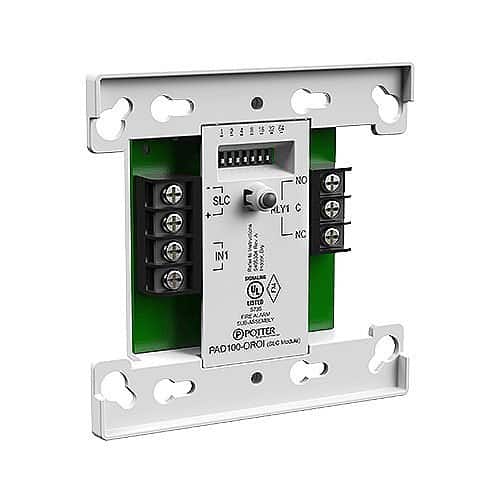

Potter PAD100-OROI One Relay One Input Module
Potter PAD100-OROI One Relay One Input Module
Regular price
$126.65
Regular price
Sale price
$126.65
Shipping calculated at checkout.
Special Order
Quantity
Couldn't load pickup availability
The PAD100-OROI uses one (1) SLC loop address when monitoring one (1) Class B circuit and providing one (1) Form C relay contact. The module mounts on either a 4" square or double gang box. The module is capable of monitoring one (1) Class B circuit. The PAD100- OROI includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel. When a the input is activated, the LED will flash at a fast rate.
Main Features
- One (1) Class B monitoring input
- One (1) Form C relay contact
- SLC Class A, Class X & Class B
- Mounts in a standard 4" or double gang box
- Wiring terminals accessible when mounted in box
- All wiring terminals accept 22 to 12 AWG
- Product includes a 5 year warranty
- UUKL Listed for Smoke Control
