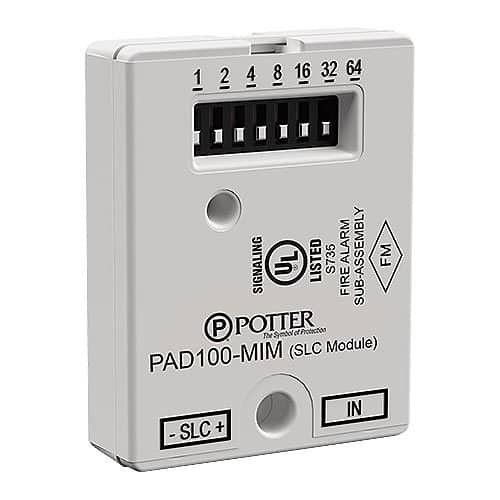

The PAD100-MIM is used to monitor the status of an initiating device(s) that contain a normally open set of dry contacts. The module is enclosed in a plastic case to protect against inadvertent shorts and ground faults.
The case can be mounted using a single screw. The PAD100-MIM has a status indicator LED to indicate communication and alarm condition. In normal condition, the LED flashes when the device is being polled by the control panel. When the input is activated, the LED will flash at a fast rate.
Main Features
- One Class B contact monitoring input
- Small size allows mounting in most electrical boxes
- SLC Class A, Class X & Class B
- 6" Pigtail wiring connections
- Product includes a 5 year warranty
- compatible with: ARC-100 Control Panel, AFC-100m Control Panel, AFC-100 Fire Alarm Control Panel, AFC-50Control Panel
