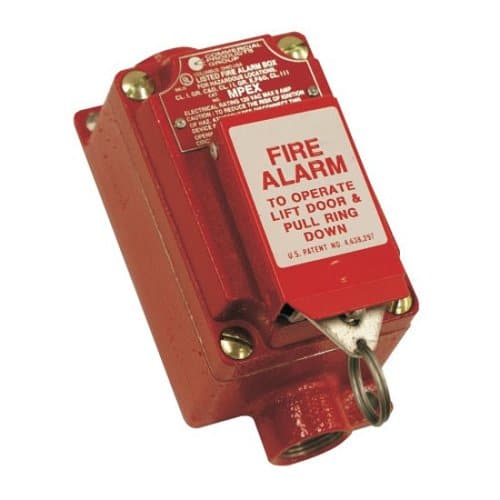

Potter MPEX Federal Signal Explosion Proof Manual Pull Station
Potter MPEX Federal Signal Explosion Proof Manual Pull Station
Regular price
$982.31
Regular price
Sale price
$982.31
Shipping calculated at checkout.
Special order — estimated 2–6 weeks lead time.
Special Order
Quantity
Couldn't load pickup availability
Explosion Proof MPEX Pull Stations are designed for use in Class I, II, and III hazardous areas. A hinged cover holds a sliding actuator plate in place. By lifting the cover and pulling down the ring, a compression spring is released, thus allowing the internal switching device (contact block) to return to its normal position, activating the alarm circuit.
Main Features
- Enclosure is made of copper free cast aluminum alloy
- 120V AC, 60Hz, 6A, with 2 - 3/4" NPT feed through conduit openings
- Red, textured powder epoxy paint finish is standard on box and cover, providing high visibility for alarm station
- UL Listed for Class I, Division 1, Groups C and D, Class II, Division 1, Groups E, F and G and Class III
- Rated NEMA 7 for Groups C and D and NEMA 9 for Groups E, F and G
- UL, ULC and CSFM Listed
