Potter MAS-MP Mounting Plate for Manual Station

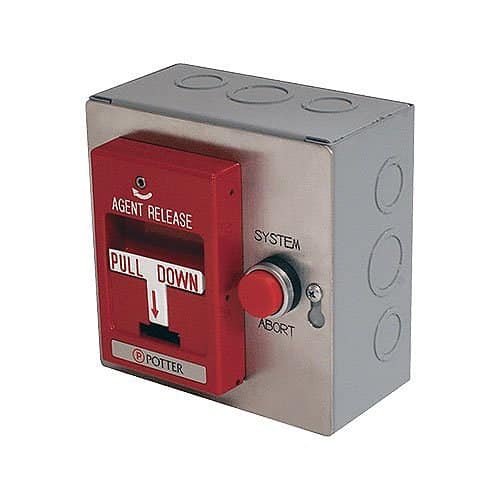

The Potter MAS Switch is designed to be used with any releasing system. The device consists of a manual pull station and a push button abort switch. This device is designed for indoor use only. The MAS-Agent Release/Fire Suppression & Abort Station was developed as a way to mount manual pull stations and abort buttons in a convenient and attractive NEMA 1 rated metal enclosure. This unit is capable of being surface mounted or flush mounted (using 5370559 Bezel) The RMS-1T Release Pull Station (Red, As Shown) and RMS-1T (Yellow) are single pole, single throw die-cast aluminum electrical switch. This pull station has a 0.5-amp snap action switch and dedicated terminal block for the ease of wire connections. All of the metal is completely coated to inhibit corrosion and provide for a uniform and quality finish. The standard model has a hex key reset. Electrical wiring diagrams are included with the product.

Main Features

• Dimensions: 6" x 6" x 3"
• NEMA 1 Indoor Use Only
• All Wiring Power Limited
• 0.5 Amp @ 30 VDC
• Single Pull Action
• Double Action models are available
• Terminal Connectors
• Optional Use Glass break rod
• 2.5 Amps @ 24 VDC (5 mA minimum)
• Normally Open, Momentary Type
