Potter EBP-407C Door Annunciator System (Kit 4130015)

The EBP-407C annunciator system is designed with a superior dual-counter, dual-active, infrared technology. The invisible infrared beam is designed to trigger a pleasant chime sound. The infrared signal differentiates among entry and exit. The dual entry/exit counter registers a count any time the beams are interrupted. Each event is counted, recorded, and registered by the built-in digital counter, and can be viewed and compared later in entry/exit modes.

• Microprocessor driven system
• Independent entry/exit counters
• 20 ft. detection range across doorway
• Resettable 4-digit digital counter (up to 9999)
• Distinctive entry/exit chime sound
• Electrically erasable memory (EEPROM)

• Description- Infrared Transceiver
• Detection Method- Active Infrared
• Detection Range- 10 ft. JP2 = ON 20 ft. JP2 = OFF (f.s.)
• Entry Detection Mode- SW1 Selective right or left entry (f.s.: left)
• Blocked Infrared Beam Warning- JP1 Selective 10 sec/60 sec/OFF (f.s.: 10 sec)

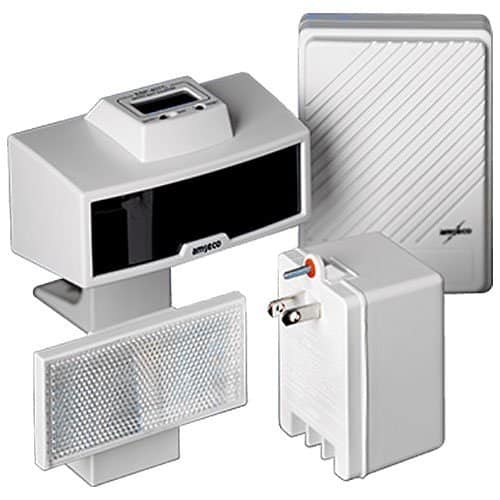

• Complete Kit Includes:
  • 1 Infrared beam sensor with dual counters
  • 1 Electonic chime with volume chime
  • 1 Reflector
  • 1 Power transformer (XF-1220 UL/CSA approved)
  • 1 Long plastic bracket
  • 1 Metal short bracket
  • 2 Short plastic brackets
  • 1 6 ft. power cord with in-line switch
  • 1 26 ft. 4-conductor chime wire (AWG #24)
  • 2 Screws for mounting chime
  • 4 Screws for securing mounting brackets
  • 1 3/8 bolt with locking washer to secure infrared beam sensor
