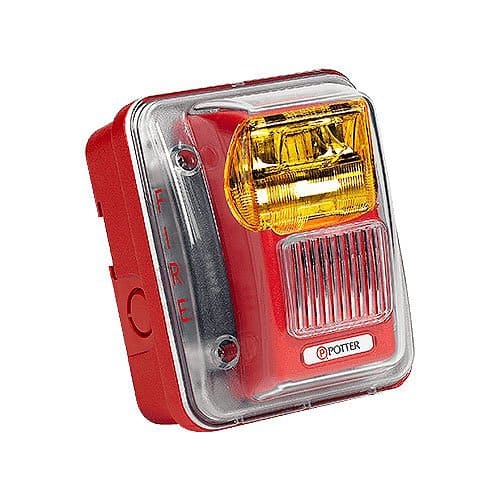

The CS/CHS-WP Series Outdoor Colored Lens Signals are 24VDC units available in lens colors of amber, blue, green and red. The Series has a fixed 75 candela strobe. They have a minimal operating current and a minimum flash rate of 1Hz regardless of input voltage. The weatherproof enclosure is made of clear Lexan® which provides maximum visibility and reliability for effective visible signaling, allowing full 75cd output. The strobes can be synced using a Gentex sync protocol or the AVSM Sync Module.
The Colored Lens Series is shipped with a die cast universal 4" mounting bracket which incorporates the popular Super-Slide® feature that allows the installer to easily pre-wire the system and test for supervision. The product also features a locking mechanism that secures the signal to the bracket without showing any screws. The Colored Lens Series also features the Checkmate® - Instant Voltage Verification Feature which allows the installer to check the voltage drop, current draw, and match against the blue print.
The CS/CHS-WP Series devices are available in two different versions. The standard version comes with a surface-mount back box (WPBB) to install directly on a wall. The Low Profile (LP) versions come with a low profile back box (WPLPBB) designed to be installed on a flush mounted electrical box.
Product Listings
ANSI/UL 464 and 1638
CSFM 7135-0328:0212 (CHS-WP Series)
CSFM 7135-0328:0213 (CS-WP Series)
Main Features
Fixed 75cd strobe
Available in surface-mount (standard) and Low Profile (LP) versions
WPBB/LP made of clear Lexan® - provides maximum visibility and reliability, allowing full 75cd output
Lens colors available in amber, blue, green, and red
Super-Slide® Bracket - Ease of supervision testing
Checkmate® - Instant voltage verification
Synchronize strobe and/or horn with AVSM module
Switch selection for high/low dBA
Switch for chime, whoop, mechanical, and 2400Hz tone
Input terminals accept 18 to 12 AWG
