Potter 1010500 Css - Coilkeeper Supervisory Switch
Potter 1010500 Css - Coilkeeper Supervisory Switch
Regular price
$240.36
Regular price
Sale price
$240.36
Shipping calculated at checkout.
Special order — estimated 2–6 weeks lead time.
Quantity
Couldn't load pickup availability

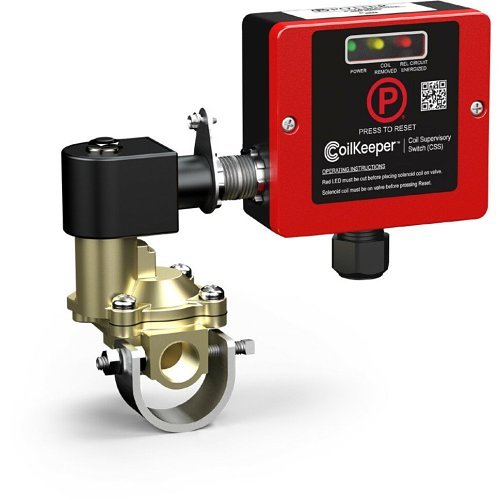

Potter's CoilKeeper Supervisory Switch is designed to supervise the position of a coil on a solenoid for a preaction/deluge system as required by NFPA 13 (8.3.1.2.1). The unit monitors the coil electronically and determines if the coil is installed on the valve stem. If a technician removes the actuator from the stem, the CoilKeeper will activate a normally open set of dry contacts that can be wired to a supervisory circuit of the releasing control panel.|
Application
Potter's CoilKeeper Supervisory Switch is designed to supervise the position of a coil on a solenoid for a preaction/deluge system as required by NFPA 13 (8.3.1.2.1). The unit monitors the coil electronically and determines if the coil is installed on the valve stem. If a technician removes the actuator from the stem, the CoilKeeper will activate a normally open set of dry contacts that can be wired to a supervisory circuit of the releasing control panel.Main Features
- Solenoid monitoring on preaction/deluge systems
- Ability to show coil state through simple LEDs
- Detects open or shorted coils
- Can be mounted at the solenoid or remotely
- Provides visual indication of coil and the releasing circuit status
