Paxton Access - Robust Exit Button E50

Robust EXIT BUTTON E50

About -

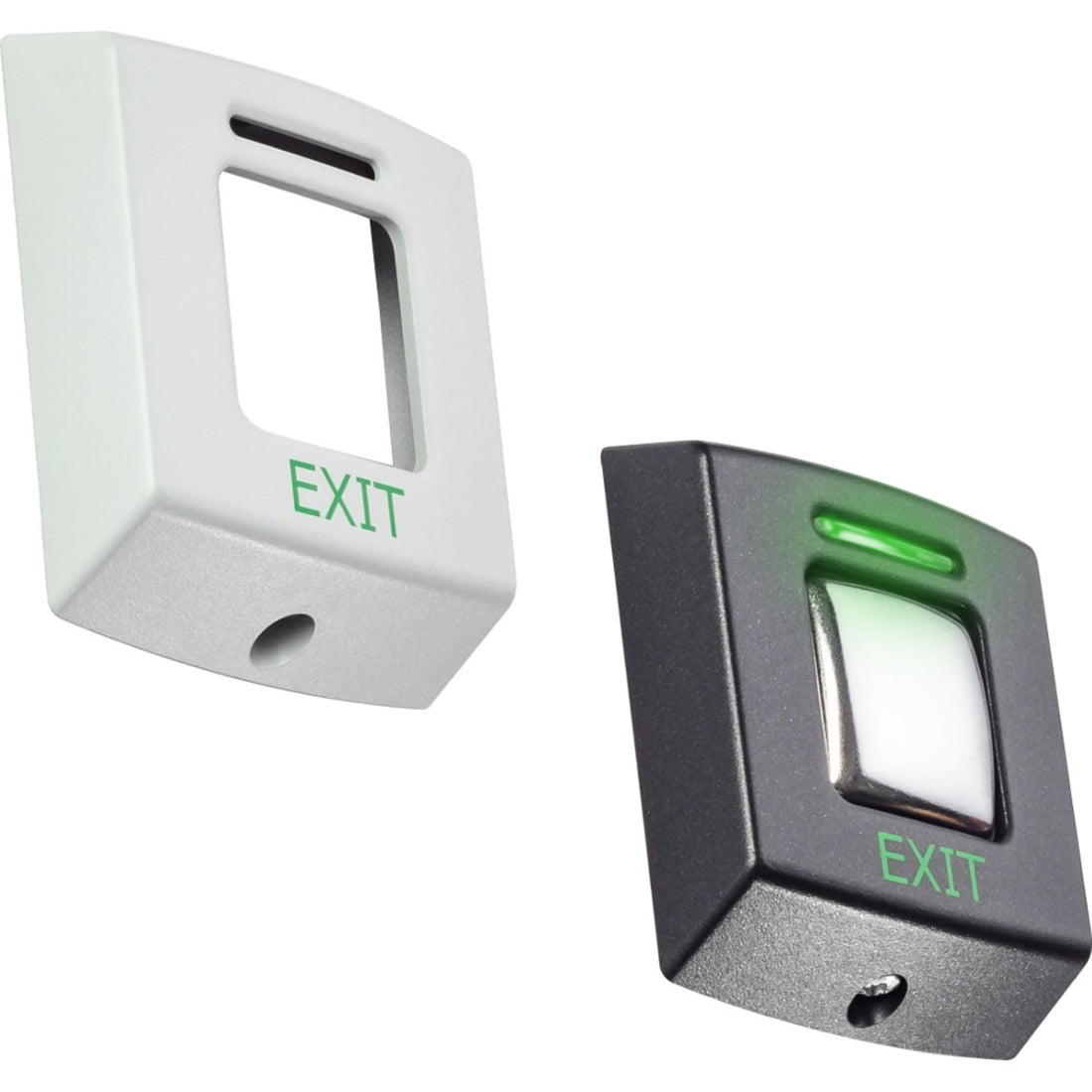

Exit buttons may be used with Compact, Switch2 or Net2 systems. The E series is designed to match our range of PROXIMITY readers and keypads. They are supplied with a choice of black or white fascias which can be fitted in the final stages of installation. Replacement bezels are available to Paxton Access registered installers free of charge. The E series exit buttons are available in three sizes. They are suitable for interior use. The Marine exit button is designed for looks as well as function. It uses a touch sensitive lens. The Marine exit button is suitable for interior use.

Installation -

The installation instructions show how the exit button is wired to Compact, Switch2 and Net2 systems. The E75 exit button fits on a standard UK recessed backbox. The exit button with screw connectors is not pre-wired. It is supplied with rising clamp terminals at the rear.

Operation -

E Series. The green LED is lit continuously. When the robust exit button is pressed, the green LED flashes to indicate that the door is unlocked (only when used with Switch2 and Net2). Marine exit button. Just touch the lens, the door opens and the exit button which is normally backlit green, flashes (only when used with Switch2 and Net2). When used with compact the exit button is illuminated but will not flash.
