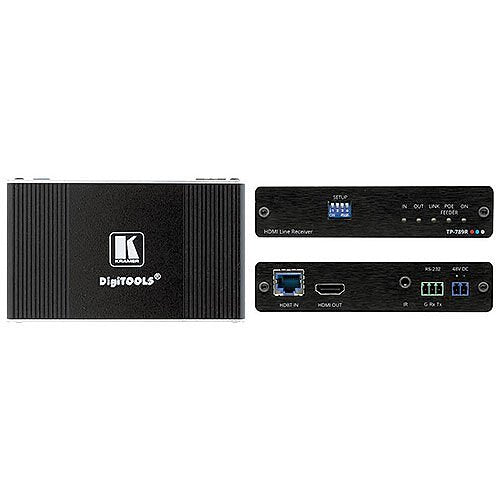

Kramer 50-80506090 TP-789R 2-Way PoE Receiver with RS-232 and IR Over Long-Reach

Kramer 50-80506090 2-Way PoE Receiver is a high-performance, long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals and two-way powering over twisted pair. It extends video signals to up to 40m (130') over Kramer copper cables at up to 4K at 60 Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device such as a PoE wall-plate, or accepts PoE through the extension cable from a PoE provider remote device, as auto-sensed by the receiver.

Main Features

• Professional HDBaseT extender for providing long–reach signals and powering over twisted–pair copper infrastructures
• Auto–senses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wall–plate, or accepts power from a remote PoE provider such as a PoE matrix
• HDMI Signal Extension
• Kramer 50-80506090 2-Way PoE Receiver, Intelligent EDID pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems
• Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound
• Serial interface data flows in both directions, allowing data transmission and device control
• IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line
• Status LED indicators for HDMI and HDBT ports and PoE feed status facilitate easy local maintenance and troubleshooting
• Single cable connectivity for both HDBaseT signals and power
