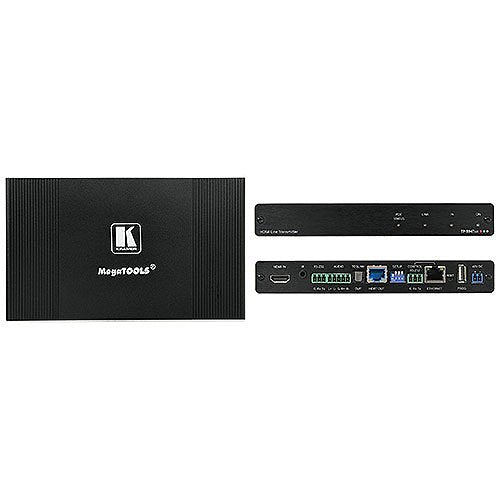

Kramer 50-00010190 TP-594Txr 4K HDR HDMI Line Transmitter with Ethernet RS232/IR and Audio over PoE Extended Reach HDBaseT 2.0

The Kramer 50-00010190 4K HDR HDMI Line Transmitter is a high-performance, extended-reach HDBaseT 2.0 transmitter for 4K@60Hz (4:4:4) HDR, HDMI™, Ethernet, RS-232, IR, ARC (Audio Return Channel) and stereo audio signals over twisted pair. TP-594Txr converts all input signals into the transmitted HDBaseT 2.0 signal and enables routing the received ARC signal to the HDMI input and to the digital/analog audio ports. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) 24bpp video resolution and provides even further reach for lower HD video resolutions. The analog port also enables embedding audio into the HDBaseT signal.

Kramer 50-00010190 4K HDR HDMI Line Transmitter Main Features

• Up to 100m (330') at 4K and 60Hz (4:4:4)
• Compatible with standard HDBaseT 2.0 systems
• ARC, Ethernet & control signal extension
• Intelligent routing of digital/analog ARC & audio
• PoE provider
