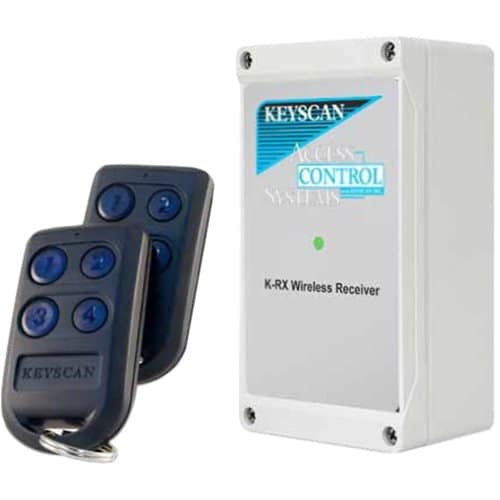

Keyscan K-RX Wireless RF Receiver, 4 Channel

The K-RX wireless receiver is a reliable selection for use with parking garage, gate and many other long-range applications. The Keyscan K-RX transmits a signal via hardwired Wiegand for access control panel authentication. The K-RX Wireless Receiver is easy to install and configure with any Keyscan access control unit. When paired with access control units and software the wireless receiver permits tracking, usage reporting and assigning access privileges (including time and day restrictions).

Main Features

• Four (4) channel receiver.
• Frequency is 433 MHz (UHF).
• Read range adjustable up to 200' (61 m) with activation LED
• Works with the K-TX2 or K-INTX2 fob transmitters (125 kHz) or K-TX2-1K and K-TX2-1KB fob transmitters (13.56 MHz) from up to 200 feet
• 12VDC operation @ 120 mA typical
• Keyscan 36 wiegand format only-Keyscan heartbeat
• May not work with other access systems
• Now with Max Secure™ encryption between transmitter and receiver for additional security
