Dormakaba usa inc. / Keyscan

Keyscan Hid Maxiprox 5375 Reader

Keyscan Hid Maxiprox 5375 Reader

$1,504.34
$1,504.34
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

View full details

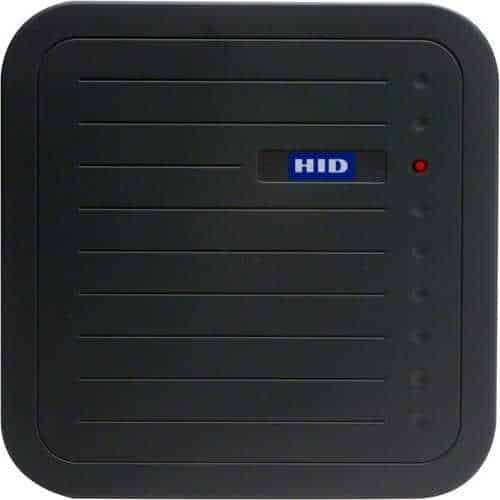

HID's MaxiProx® Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.
  • Long read range distance (up to 6' with ProxPass).
  • Autotune allows read range to be maintained within four inches of metal.
  • Wiegand, Clock-and-Data, RS-232, RS-422, and RS-485 output modes are configurable.
  • "Parking hold" feature ensures accurate detection of vehicles in parking lanes.
  • Power requirements: 12 or 24 VDC (configurable) .
  • Current requirements: 200mA avg / 700 mA peak at 12VDC; 260mA avg / 1.2A peak at 24 VDC.
  • Dimensions: 12.0" x 12.0" x 1.0" (30.5 x 30.5 x 2.54 cm).
  • Long read range distance (up to 6' with ProxPass).
  • Autotune allows read range to be maintained within four inches of metal.
  • Wiegand, Clock-and-Data and selectable serial outputs available.
  • "Parking hold" feature allows connection to a loop detector to ensure accurate detection of vehicles in parking lanes.
  • Compatible with all HID cards and tags with formats up to 85 bits.
  • Multicolor LED with internal or host control of the LED and beeper.
  • Two MaxiProx units can operate one meter apart for "HI-LO" (truck and car) installations.
  • Reader supervision signal for CASI-RUSCO panels.
