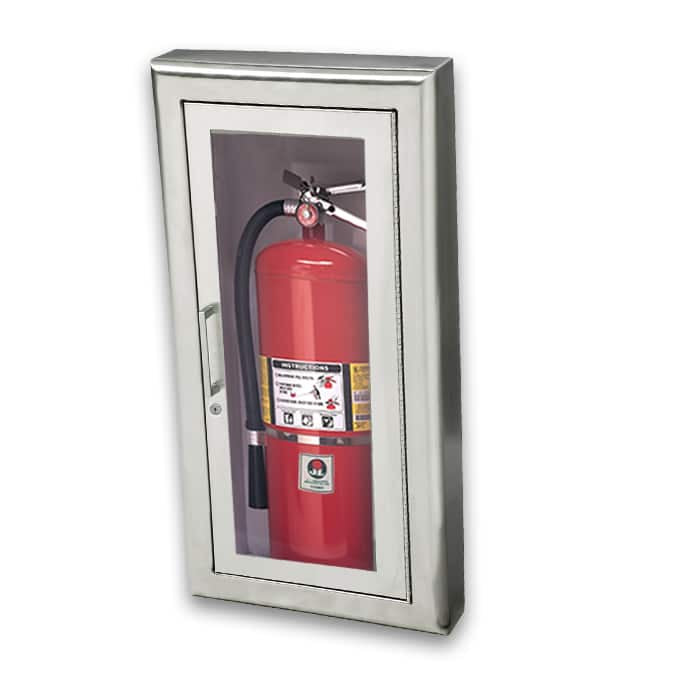

JL Cosmopolitan Series - Stainless Steel Fire Extinguisher Cabinet 1037G10 13 7/8" x 27 3/8" (Full Glazing with SAF-T-LOK)

The Cosmopolitan Series in Stainless Steel Is a Modern, Clean Look for Recessed, Semi-Recessed & Surface-Mounted Cabinets.

TUB Inside Dimensions 10 1/2 x 24 x 6

 Frame Outside Dimensions 13 7/8 x 27 3/8

Wall Opening 11 1/2 x 25 x 3 1/8

 Door & Trim Construction: 304 stainless steel with #4 finish. Flush cabinet doors with a 5/8 door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4 wide trim on frame and 1-1/4³ trim on doors with glazing.

Trim Style & Depth: Recessed 3/8 flat trim, Semi Recessed “ 1-1/4, 1-1/2 Square Edge or 2-1/2, 3, 4, 4-1/2 Rolled Edge (4 has recessed flush pull). Surface-mount models have a square edge. See separate submittal for trimless or surface-mount with rolled edge.

Tub: The tub is constructed of cold rolled steel with white powder-coat finish standard. Surface-mount models have a stainless tub.

Options: Fire-rated, glazing, pulls, other stainless finishes, alarms.

Listings and Ratings: UL listed and labeled as an approved membrane penetration firestop system for up to 2 hours in accordance with UL 1479 (ASTM-E814) and CAN/ULC-S115
