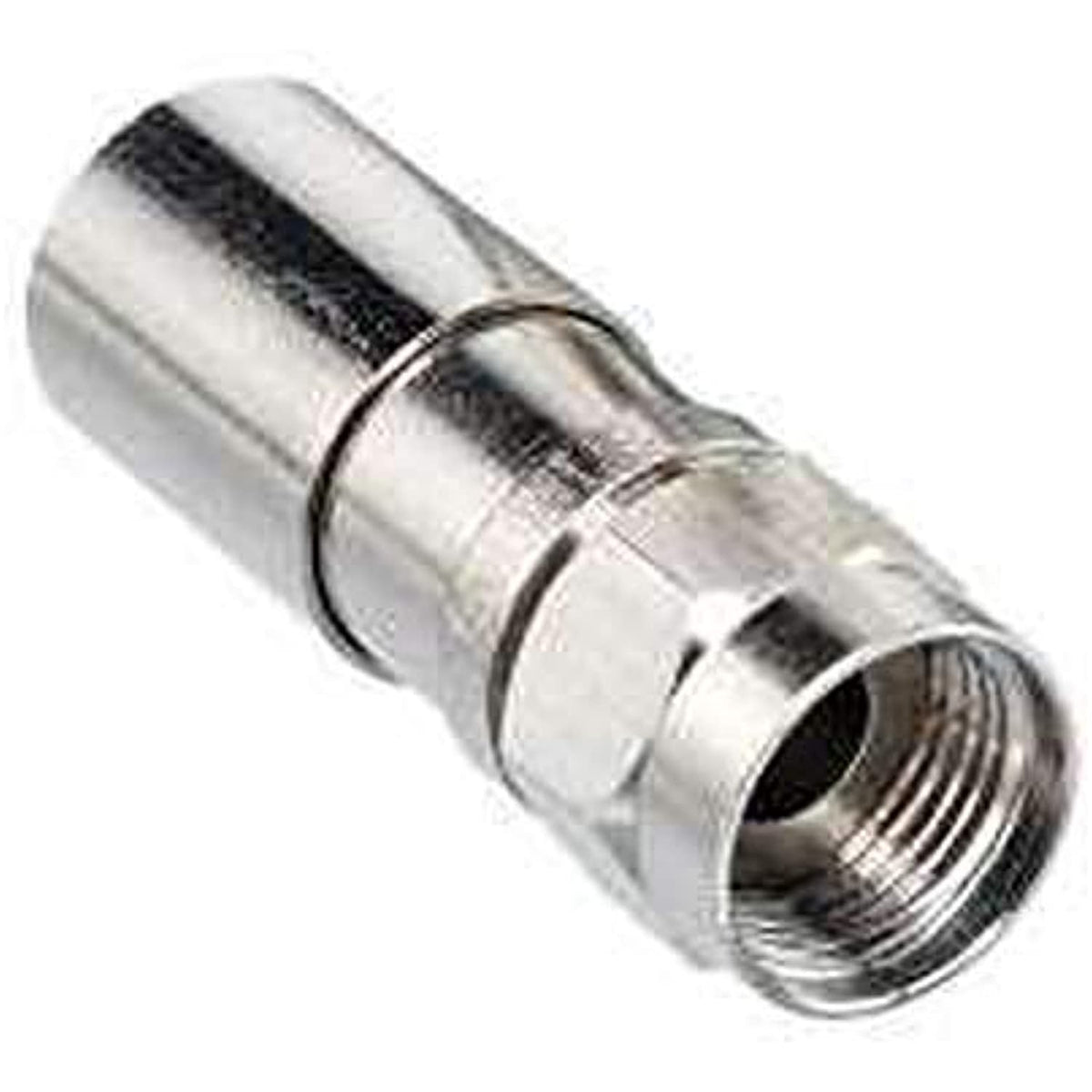

• Metallic connector on a white background

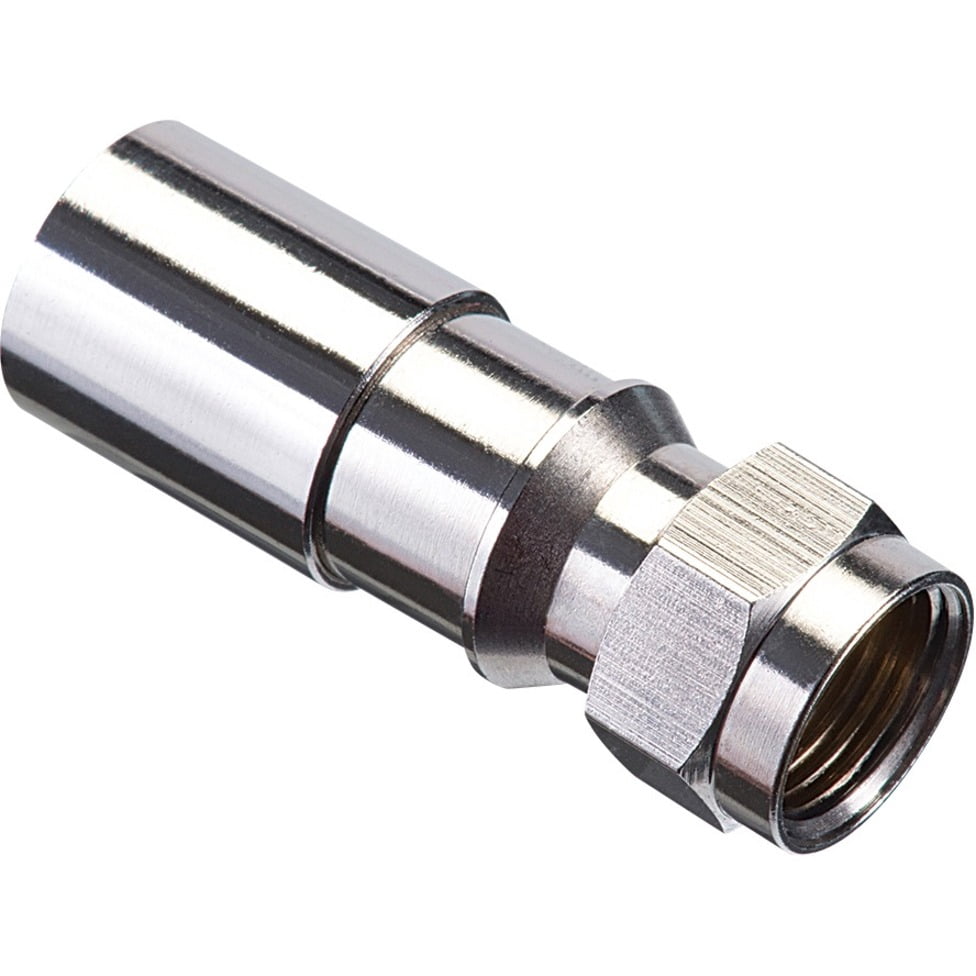

  • Metal plumbing fitting on a white background
1 2

Ideal

Ideal Industries 92-650P RG-6 F Compression Connector

Ideal Industries 92-650P RG-6 F Compression Connector

MPN: 92-650P

$59.56
$59.56
Sale Special Order
Shipping calculated at checkout.

224 in stock
View full details

The IDEAL RTQâ„¢XRâ„¢series of F connectors offer a single connector solution to cover a range of coax types.

InSITE® Technology gives installers a large, clear 360° visual indication that the coax cable has been correctly and completely inserted into the connector. Unlike connectors that use a sliding center pin contact as an indicator, the gold plated center pin in the InSITE® is fixed. The center pin will not fall out of the connector during transport or become loose after repeated connection cycles. This newly designed pin can handle a wide 23-18 AWG solid conductor range so fewer connectors are needed for specialty and application specific cables.

Main Features

  • Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables
  • Center conductor range: All
  • Dielectric diameter range .168" - .183"
  • Outer jacket diameter range .226" - .310"
