Honeywell PRO42OUT PRO4200 16-Relay Output Module

Honeywell PRO42OUT PRO4200 16-Relay Output Module

$863.29
$863.29
Sale Special Order
Shipping calculated at checkout.

View full details
The Honeywell PRO42OUT PRO4200 16-Relay Output Module is designed for high density installations. The PRO4200 professional series can be managed through WIN-PAK integrated security suite for more advanced features such as Video integration, advance reporting, rules and photo badging, elevator control, touch-less access and mobile credential management. Supporting up to 18 doors per enclosure and 34 doors per intelligent controller along with up to 100,000 card capacity, PRO4200 Series provide a combination of small installation footprint and superior cost per door ratio. The new PRO42IC Intelligent Controller provides I/O support for 2 Doors *.
The PRO42R1 provides I/O support for one card access reader, while the PRO42R2 support two card access readers. Both interface with the intelligent control module (PRO42IC). In the event that communication to the intelligent control module is lost, the card access readers be individually configured to allow entrance based on security needs. This customization allow or a be configured as secured, locked and unlocked. PRO4200 modules provide latest bi-directional and strong encrypted OSDP communication with the Access Control readers. For legacy and retrofit installations, Wiegand format is still supported.
The PRO42OUT interfaces provide up to 16, Form C, 30 VDC, 2A relay output controls depending if the board is rack or tile-mounted, power fail and panel tamper when tile mounted. Relays may be used for elevator control, status annunciation and for general facility control, such as door monitoring. The PRO42IN interfaces provide 16 supervised alarm inputs and a dedicated power fail and panel tamper when tile mounted. An analog to digital converter samples the input values and the digitized result is filtered and processed. Filter parameters are configurable for each input point, resulting in the ability to specify a custom End-Of-Line (EOL) resistance value, sensitivity range and timing parameter.

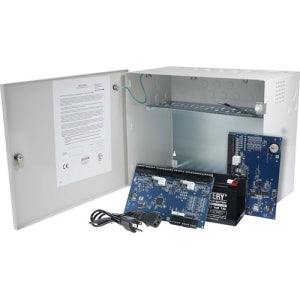

The PRO4200 Series of access modules are designed to accommodate various mounting options. Units can be mounted in a rack configuration (PRO22ENC1, PRO22ENC2 and PRO22E C5) when space is limited, or in a tile-mount configuration (PRO22ENC3). The PRO22ENC1 is a wall-mounted enclosure rack unit (See picture) The PRO22ENC2 is a 19" rack-mounted enclosure rack unit The PRO22ENC5 is a rack unit which fits inside a customer's enclosure

Main Features

  • Supports over 50,000 transaction buffer
  • User programmable relay outputs allow for specific control needs
  • User programmable alarm inputs offer flexible system configuration and control
