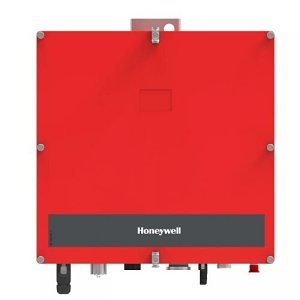

• Red Honeywell device on a white background
1 1

honeywell

Honeywell BDA HONBDA-D-7S27B Fiplex Dual Band Digital Signal Booster

Honeywell BDA HONBDA-D-7S27B Fiplex Dual Band Digital Signal Booster

MPN: HONBDA-D-7S27B

$6,433.82
$6,433.82
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Special Order

Out of stock
View full details
Digital Class A/B BDAs are Channel Selective, software programmable or adjustable bandwidths UL2524 2nd Edition Listed Digital signal boosters for In-Building Emergency Responder Communication Enhancement Systems (ERCES).License Upgrade options to Class A & 2W/+33dBm

Main Features

  • PS 700 + PS 800: Supports Public Safety 700 & 800 MHz in single or dual band versions with FirstNet Band 14, 0.5W/+27 dBm, 2W/+33 dBm and 5W/+37 dBm Power versions. Field Upgradeable Digital 700/800MHz from Single to Dual Band, from Class B to Class A, from 0.5W to 2W
  • Channel Selective (Class A) or Band Selective (Class B), software programmable or adjustable bandwidths. Fully digital signal boosters, FPGA based
  • Auto diagnostic. Uplink and downlink squelch, per channel and per time slot on channel selective mode. User adjustable gain control, UL and DL independent, per band, per channel and per time slot on channel selective mode. Automatic gain control per band, per channel, per time slot. Oscillation detection with alarm and auto-shutdown
  • Antenna Isolation measurement feature. Antenna Isolation alarm.Built-in input and output spectrum analyzer
  • Weatherproof enclosure, IP67/NEMA4X. NFPA compliant with dry contact alarms. PS700 and PS800 High capacity versions (64 channels)
  • Country of Origin: USA, Buy American Compliant.
  • 3-year warranty
  • IFC & NFPA compliance; UL2524 2nd Edition Listing
