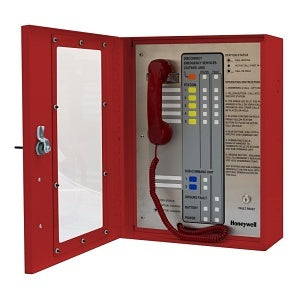

Honeywell Area of Refuge HON-AOR-5-DKL-R Fixed Station Analog Command Unit with 5-Station Capacity, Dark Lens, Red

Honeywell Area of Refuge HON-AOR-5-DKL-R Fixed Station Analog Command Unit with 5-Station Capacity, Dark Lens, Red

Regular price $2,527.81
Regular price Sale price $2,527.81
Sale Special Order
Shipping calculated at checkout.

Special order — estimated 2–6 weeks lead time.

Quantity
View full details
Talkaphone's new fully integrated analog command units accommodate up to five (5) ADA-compliant Area of Refuge stations. The units provide both audible and visual indications for an incoming call - LED lights indicate the calling location. AOR command units are fully compliant with the NFPA 72 (2022) §24.10, IBC (2021) §1009, ICC A117.1 (2017) Ch. 7, and ADAAG (2010) Ch. 7.

Main Features

  • Dark Lens
  • Automatically and continuously supervises for integrity (opens, shorts, and system ground fault), low battery backup, and 24V DC input power fail alerts by relay output to an addressable fire panel, LED, and sounder
  • On-site calling requires no outside phone line
  • Off-site calling requires one (1) analog phone line (PSTN line)
  • Solid LED indicates active call. Flashing LEDs indicate stations that are waiting to be answered
  • When first call is completed, second call is automatically placed and Command Unit rings. Multiple calls are placed in queue on a "first-in, first-out (FIFO)" basis
  • Includes built-in handset with volume control
  • Dedicated talk/hold buttons for each area of rescue station
  • LEDs on command unit indicate calling station and line status
