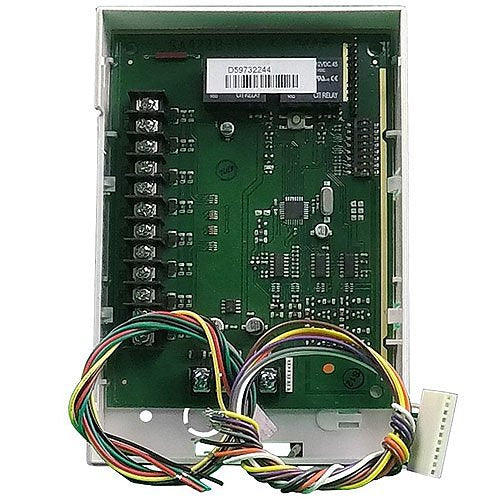

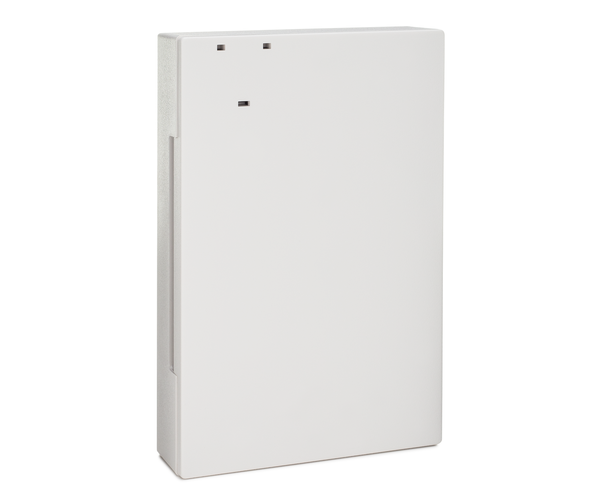

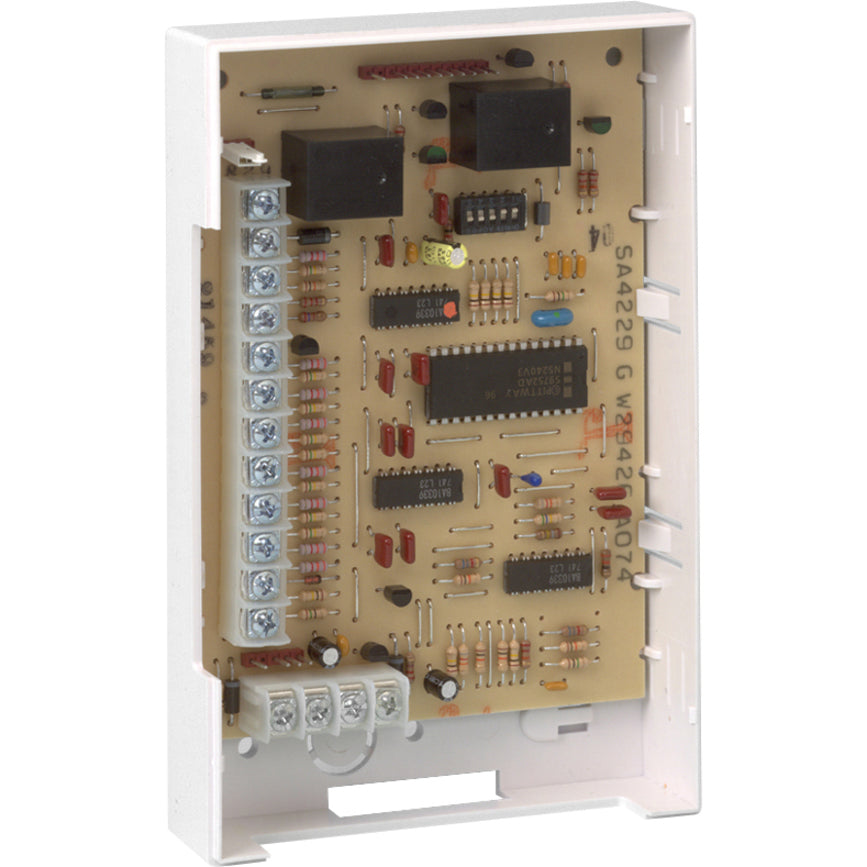

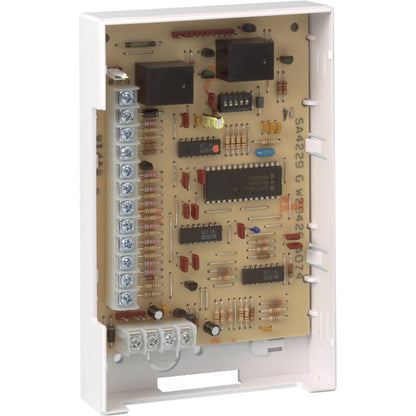

Honeywell 4229 Ademco Wired Zone Expander and Relay Board
Honeywell 4229 Ademco Wired Zone Expander and Relay Board
Regular price
$131.99
Regular price
Sale price
$131.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Increase the functionality of your security system with Honeywell Home's full line of expansion devices and accessories. Honeywell Home 4229 is an Addressable eight-zone expander with two relay outputs for Honeywell ECP bus addressable systems.
Main Features
- Includes Eight 1K end-of-line resistors
- Provides 8 end-of-line supervised zones and 2 on-board programmable form C relays
- Connection made to the control's console wires
- Supported on VISTA-20HW
- Can be located anywhere along the four-wire addressable ECP bus
- Simple DIP switch addressing
- Adds up to eight class B zone inputs to an ECP bus addressable system, each with 1K end-of-line resistors
- Class B loops provide a broad, 300 ohm tolerance
- Supervised for open, shorted or normal circuit conditions
- Add up to two relay outputs to the system
- UL Listed for commercial burglary applications
- All VISTA control panels that are compatible with ECP bus zone expandability such as VISTA-20P and VISTA-21iP
- Not compatible with V-Plex control panels
