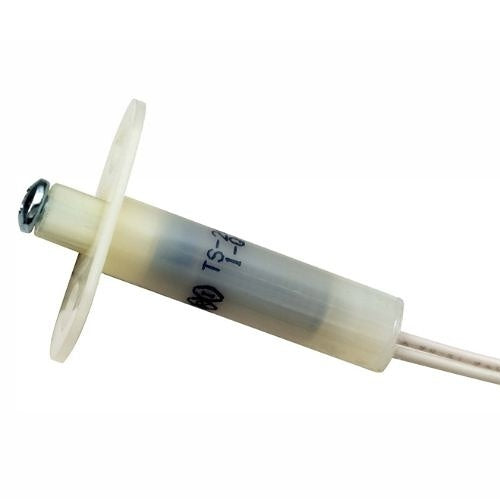

The adjustable plunger actuated TS series was developed to provide a tamper switch with a smaller diameter for applications where a normal plunger or roller ball type switch is too large. The 3/8" diameter is ideal for a variety of door and window applications. The oval flange allows the switch to be solidly anchored where needed. The design also resists locking problems caused by expansion or contraction.
Â
What’s Included
- TS-20 Plunger Switch
- Mounting Hardware
Main Features
- Flanges for Reliable, Positive Retention
- Replaces Old Mechanical Tampers
- Adjustable Plunger from 1/4†to 1/2â€
- Enclosure size: 1" H x 1-1/2" W x 2" L
